| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

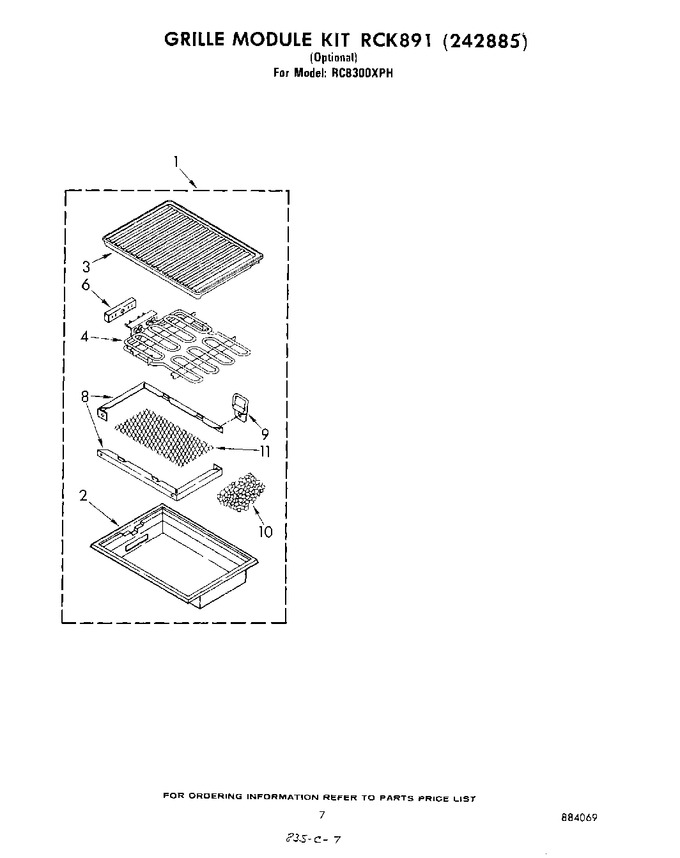

| 1 | 242885 | Grill Kit, Complete |
|
- | |||||
| 2 | 877548 | Pan, Grill |
|
- | |||||
| 3 | 877549 | Rack, Grill (2) |
|
- | |||||
| 4 | 877541 | Unit, Dual (2100w) |
|
- | |||||
| 6 | 868878 | Pushnut, 1/4`` |
|
- | |||||
| 6 | 868437 | Receptacle, Male |
|
- | |||||
| 8 | 877542 | Frame, Basket (2) |
|
- | |||||
| 9 | 877543 | Handle, Basket (2) |
|
- | |||||
| 9 | 868430 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 10 | 868460 | Rocks, Lava (4 Lbs.) |
|
- | |||||
| 11 | 877609 | Screen, Basket (2) |
|
- |
