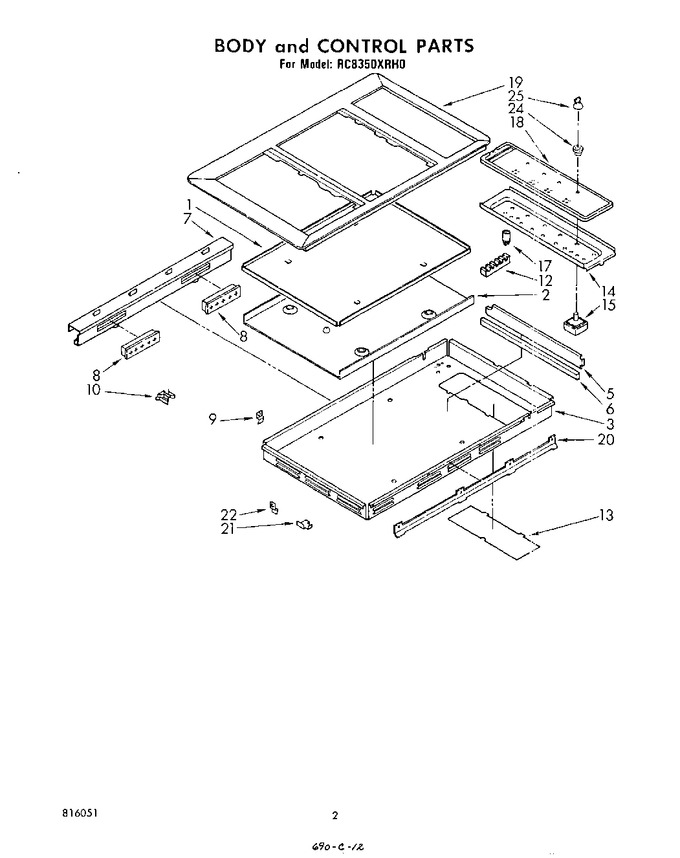

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877608		Retainer, Insulation		Appelez-nous	-
2	877552		Shield, Bottom		Appelez-nous	-
3	680363		Screw,10-24 X 1/2		Appelez-nous	-
3	877553		Box, Outer		Appelez-nous	-
3	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 488568)				$ 7.42
5	868959		Screw, 10-24 X 1/4 (3)		Appelez-nous	-
5	868417		Divider, Box		Appelez-nous	-
6	868461		Pan, Foam		Appelez-nous	-
7	868959		Screw, 10-24 X 1/4 (2)		Appelez-nous	-
7	868418		Shield, Wire		Appelez-nous	-
8	868420		Receptacle, Female (2)		Appelez-nous	-
9	868959		Screw, 10-24 X 1/4 (4)		Appelez-nous	-
9	868421		Clip, Receptacle (4)		Appelez-nous	-
10	816083		Terminal, Female (10)		Appelez-nous	-
10	WP486579		Screw, 8-32 X 1/4 (10)   (Replaces: 866466)				$ 7.10
12	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
12	487836		Nut, 10-32 (6)		Appelez-nous	-
12	WP8203546		Block, Terminal (main)   (Replaces: 241212)			Immediately	$ 27.12
13	868959		Screw, 10-24 X 1/4 (2)		Appelez-nous	-
13	868423		Cover, Access		Appelez-nous	-
14	877554		Bracket, Control		Appelez-nous	-
15	877919		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
15	868955		Switch, Infinite (4)		Appelez-nous	-
17	868433		Light, Indicator (2)		Appelez-nous	-
18	877555		Panel, Control (glass)		Appelez-nous	-
18	866454		Tape, Foam		Appelez-nous	-
19	877556		Frame, Cooktop		Appelez-nous	-
19	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
20	865751		Screw (5)		Appelez-nous	-
20	877557		Shield, Front		Appelez-nous	-
20	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
20	868467		Clip (4)		Appelez-nous	-
21	877558		Spacer, End		Appelez-nous	-
21	868430		Screw 10-24 X 1/2		Appelez-nous	-
22	868421		Clip, Receptacle Mounting		Appelez-nous	-
22	868430		Screw 10-24 X 1/2		Appelez-nous	-
24	868465		Bushing, Switch (4)		Appelez-nous	-
25	877924		Control Knob (4)		Appelez-nous	-
