SELECT A DIAGRAM

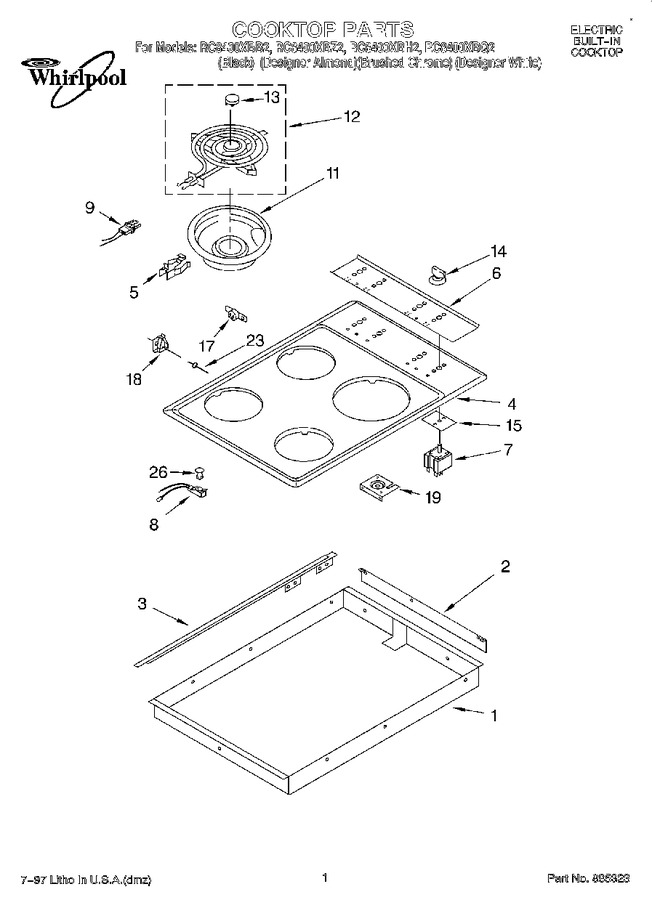

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4454829 | Burner Box |
|
- | |||||
| 1 | 4159456 | Screw |
|
- | |||||
| 2 | 4159456 | Screw |
|
- | |||||
| 2 | 4454837 | Shield, Heat |
|
- | |||||
| 3 | 4159456 | Screw |
|
- | |||||
| 3 | 4454836 | Bracket, Mounting |
|
- | |||||
| 4 | 3183618 | Cooktop (black) |
|
- | |||||
| 4 | 3148755 | Cooktop (designer Almond) |
|
- | |||||
| 4 | 3148754 | Cooktop (designer White) |
|
- | |||||
| 4 | 3183904 | Cooktop (brushed Chrome) |
|
- | |||||
| 4 | WP488729 | Cooktop (screw,) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 5 | 330031 | Clip, Mtg. (4) (Replaces: 312606) |
|
Immediately | $ 17.93 | ||||
| 6 | 3185691 | Panel, Control (black, Almond, Brushed Chrome Models) |
|
- | |||||
| 6 | 3185690 | Panel, Control (designer White Model) |
|
- | |||||
| 7 | 4454533 | Switch, Infinite (use W/6`` Element (silver Shaft)) |
|
- | |||||
| 7 | 4454534 | Switch, Infinite (use W/8`` Element (red Shaft)) |
|
- | |||||
| 7 | 155023 | Switch, Infinite (screw,) |
|
Immediately | $ 7.91 | ||||
| 8 | 3187777 | Light, Indicator (2) |
|
- | |||||
| 9 | 330031 | Receptacle, Elmnt |
|
Immediately | $ 17.93 | ||||
| 11 | WPW10290350 | Pan, Surface (8`` Pan (2)) (Replaces: 3169205) |
|
Immediately | $ 16.45 | ||||
| 11 | W10290353RW | Pan, Surface (6`` Pan (2)) (Replaces: 3169204) |
|
Immediately | $ 22.47 | ||||
| 12 | WP660533 | Unit, Surface (2) (8``) (240v) (Replaces: 660533) |
|
Immediately | $ 40.21 | ||||
| 12 | WP660532 | Unit, Surface (2) (6``) (240v) (Replaces: 660532) |
|
Immediately | $ 45.10 | ||||
| 13 | 309195 | Medallion, Surface Unit |
|
- | |||||
| 14 | 3183120 | Knob, Control (4) (black, Almond, Brushed Chrome Models) |
|
- | |||||
| 14 | 3183119 | Knob, Control (4) (designer White Model) |
|
- | |||||
| 15 | 3183956 | Seal, Switch Shaft (4) |
|
$ 43.89 | |||||
| 17 | WP3188286 | Thermostat (Replaces: 3188286) |
|
$ 69.44 | |||||
| 17 | 313806 | Screw |
|
- | |||||
| 18 | 814103 | Clip, Retainer (4) (Replaces: 3148790) |
|
$ 9.47 | |||||
| 19 | 4159372 | Screw |
|
- | |||||
| 19 | 3191115 | Cover, Conduit |
|
- | |||||
| 23 | 814103 | Rivet (4) (Replaces: 3148789) |
|
$ 9.47 | |||||
| 26 | 313602 | Lens, Light |
|
- | |||||
| LIT4454652 | Installation Instructions |
|
- | ||||||
| LIT3189269 | Use & Care Guide |
|
- | ||||||
| LIT3187833 | Wiring Diagram |
|
- | ||||||
| WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | |||||
| 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 78.23 | ||||||
| 3188525 | Conduit Assembly |
|
- | ||||||
| 16515 | Clip (Replaces: 313438) |
|
$ 18.48 | ||||||
| 4159456 | Screw |
|
- | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 10.48 | ||||||
| 3188440 | Harness, Wiring (surface Unit) |
|
- | ||||||
| 3172515 | Mounting Hardware |
|
- |
