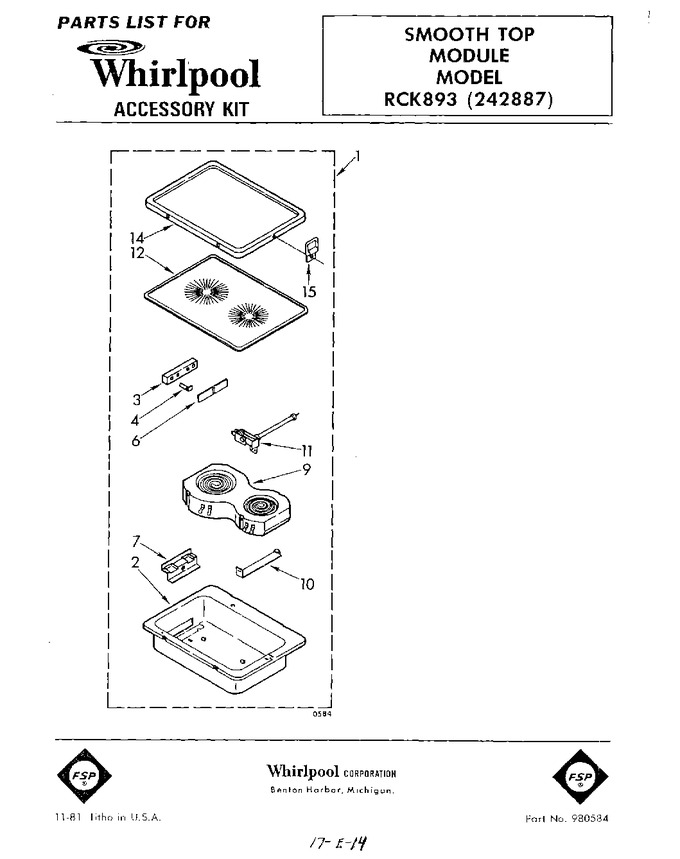

SELECT A DIAGRAM

01 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242887		Smooth Top Module, Complete				$ 293.39
2	877598		Pan, Surface Unit		Appelez-nous	-
3	868437		Receptacle, Male		Appelez-nous	-
4	868438		Terminal, Male (4)		Appelez-nous	-
4	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
6	868814		Insulator, Receptacle		Appelez-nous	-
7	868440		Bracket		Appelez-nous	-
7	866272		Pushnut, 1/8		Appelez-nous	-
7	WP486754		Screw, 6-32 X 5/16 (3)   (Replaces: 680406)				$ 7.21
9	877599		Unit, Assembly		Appelez-nous	-
10	877600		Bracket (2)		Appelez-nous	-
10	WP486754		Screw, 6-32 X 5/16 (4)   (Replaces: 680406)				$ 7.21
11	877602		Limit, Control (long)		Appelez-nous	-
11	877601		Limit, Control (short)		Appelez-nous	-
12	877611		Cooktop, Glass		Appelez-nous	-
14	877612		Frame, Cooktop		Appelez-nous	-
14	868382		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
15	868866		Handle Assembly		Appelez-nous	-
15	980584		List, Repair Parts		Appelez-nous	-
15	WP486754		Screw, 6-32 X 5/16   (Replaces: 680406)				$ 7.21

    View Diagram in Separate Window       Print Part List
