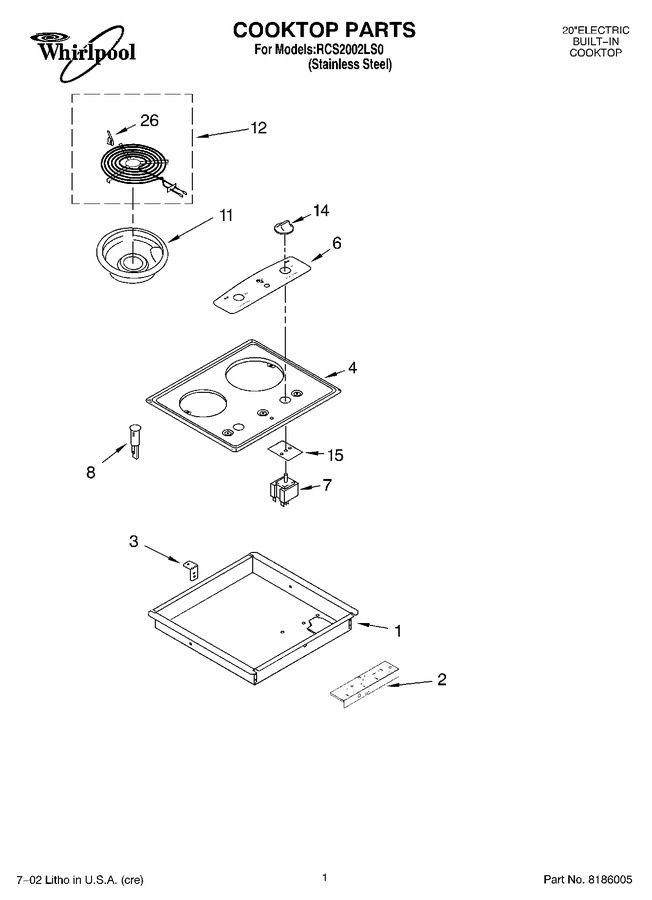

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192572 | Burner Box |
|
- | |||||
| 2 | 3182118 | Bracket, Switch Mounting |
|
- | |||||
| 2 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 3191166 | Cooktop (stainless Steel) |
|
- | |||||
| 6 | 8285118 | Panel, Control |
|
- | |||||
| 7 | 3191475 | Switch Infinite (use W/8`` Element (yellow Shaft)) |
|
- | |||||
| 7 | WP3191472 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191472) |
|
$ 158.38 | |||||
| 7 | 3400855 | Switch Infinite (screw) |
|
- | |||||
| 8 | 3192213 | Light, Indicator |
|
- | |||||
| 11 | WPW10196406 | Pan, Surface Unit (6``) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 11 | WP12990527 | Pan, Surface Unit (screw) (Replaces: 3400843) |
|
Immediately | $ 7.88 | ||||
| 11 | W10196405RW | Pan, Surface Unit (8``) (Replaces: 3195209) |
|
Immediately | $ 19.64 | ||||
| 12 | 3191460 | Element, Surface (6``) |
|
$ 68.45 | |||||
| 12 | 3191459 | Element, Surface (8``) |
|
$ 78.95 | |||||
| 14 | WP8522566 | Knob, Control (2) (Replaces: 8522566) |
|
$ 20.06 | |||||
| 15 | 3183956 | Seal, Switch Shaft (2) |
|
$ 43.89 | |||||
| 26 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 7.31 | ||||
| 4455805 | Grommet, Harness |
|
- | ||||||
| W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | |||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~ |
|
- | ||||||
| 3191232 | Harness, Wiring (main) |
|
- | ||||||
| 3191510 | Harness, Wire (light) |
|
- | ||||||
| 16515 | Clip (Replaces: 313438) |
|
$ 18.48 | ||||||
| 3192453 | Cord, Power |
|
- | ||||||
| 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 78.23 | ||||||
| WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.88 | |||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.80 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| LIT4455835 | Installation Instructions |
|
- | ||||||
| LIT8284861 | Use & Care Guide |
|
- | ||||||
| LIT3192350 | Wire Diagram |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- |
