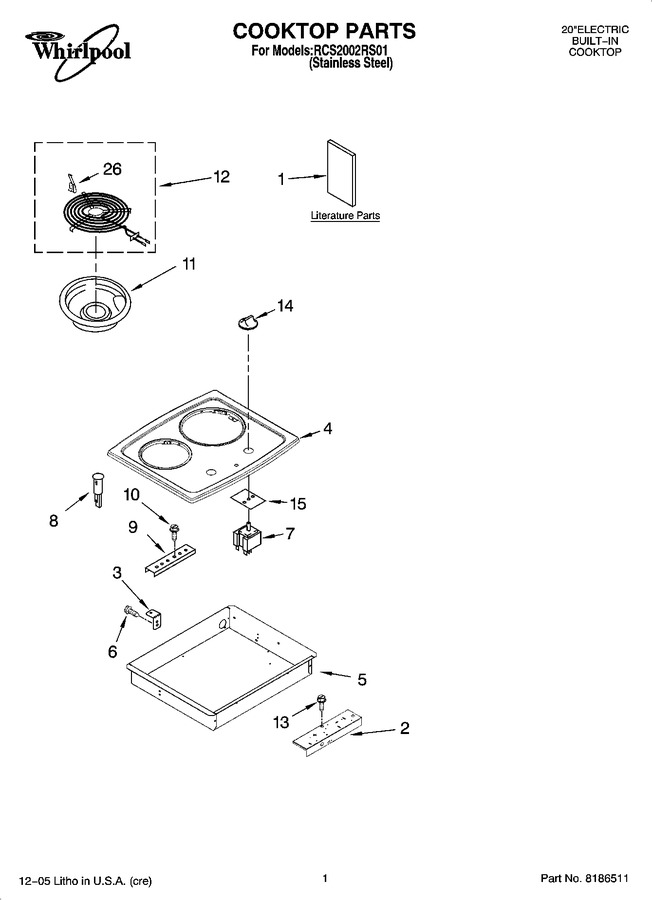

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8286310 | Installation, Instructions |
|
- | |||||
| 1 | 8286613 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 2 | WP8286443 | Bracket, Switch Mounting (Replaces: 8286443) |
|
$ 117.28 | |||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 4 | WPW10140169 | Cooktop (stainless Steel) (Replaces: 8286389LM) |
|
$ 374.51 | |||||
| 5 | 8286376 | Burner Box |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | WP3191472 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191472) |
|
$ 158.38 | |||||
| 7 | 3191475 | Switch Infinite (use W/8`` Element (yellow Shaft)) |
|
- | |||||
| 8 | 3192213 | Light, Indicator |
|
- | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 10 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 11 | W10196405RW | Pan, Surface Unit (8``) (Replaces: 3195209) |
|
Immediately | $ 19.64 | ||||
| 11 | WPW10196406 | Pan, Surface Unit (6``) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 12 | 3191459 | Element, Surface (8``) |
|
$ 78.95 | |||||
| 12 | 3191460 | Element, Surface (6``) |
|
$ 68.45 | |||||
| 13 | 3400855 | Screw |
|
- | |||||
| 14 | WP8286043BL | Knob, Control (2) (Replaces: 8286043BL) |
|
$ 21.31 | |||||
| 15 | 3183956 | Seal, Switch Shaft (2) |
|
$ 43.89 | |||||
| 26 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 7.31 | ||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| N/A | Following Parts Not Illustrated Splicing Wires--25ft. Length |
|
- | ||||||
| 8286395 | Cord, Power |
|
- | ||||||
| 16515 | Clip (Replaces: 313438) |
|
$ 18.48 | ||||||
| 8286388 | Bracket, Harness Cover |
|
- | ||||||
| W11676902 | Harness, Wiring (main) (Replaces: 8286437) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.88 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | |||||
| 4455805 | Grommet, Harness |
|
- | ||||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.80 | ||||||
| 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 78.23 |
