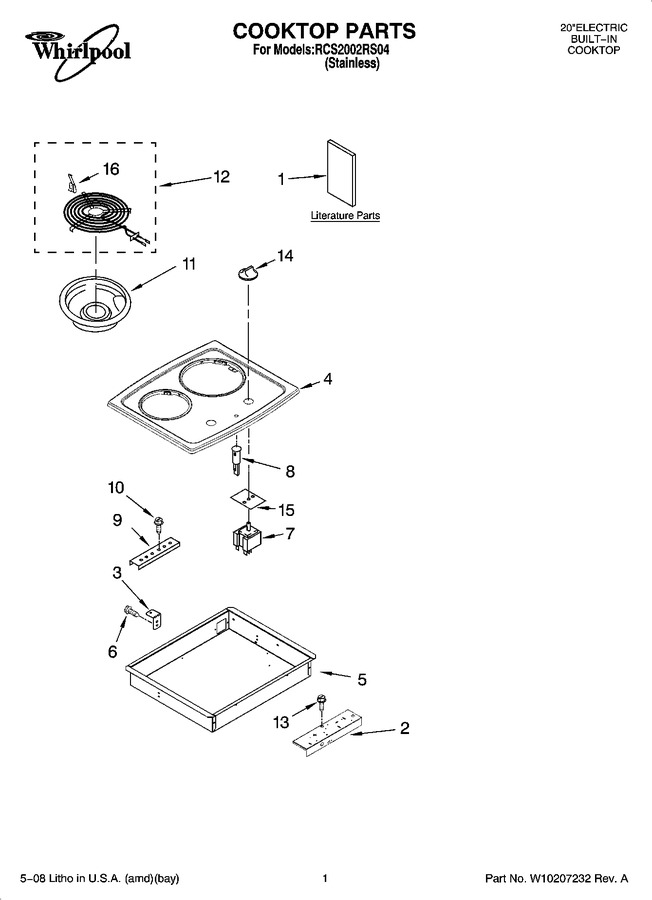

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162164 | Use & Care Guide |
|
- | |||||
| 1 | 8286310 | Installation, Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | WP8286443 | Bracket, Switch Mounting (Replaces: 8286443) |
|
$ 117.28 | |||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 4 | WPW10140169 | Cooktop (Replaces: W10140169) |
|
$ 374.51 | |||||
| 5 | W10005700 | Burner Box |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | WP3191472 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191472) |
|
$ 158.38 | |||||
| 7 | 3191475 | Switch Infinite (use W/8`` Element (yellow Shaft)) |
|
- | |||||
| 8 | 3192213 | Light, Indicator |
|
- | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 10 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 11 | W10196405RW | Pan, Surface Unit (8``) (Replaces: 3195209) |
|
Immediately | $ 19.64 | ||||
| 11 | WPW10196406 | Pan, Surface Unit (6``) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 12 | 3191459 | Element, Surface (8``) |
|
$ 78.95 | |||||
| 12 | 3191460 | Element, Surface (6``) |
|
$ 68.45 | |||||
| 13 | 3400855 | Screw |
|
- | |||||
| 14 | WP8286043BL | Knob, Control (2) (Replaces: 8286043BL) |
|
$ 21.31 | |||||
| 15 | 3183956 | Seal, Switch Shaft (2) |
|
$ 43.89 | |||||
| 16 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 7.31 | ||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| W10005710 | Wiring Harness Parts (bracket, Harness Cover) |
|
- | ||||||
| WP3351614 | Wiring Harness Parts (screw) (Replaces: W10200293) |
|
Immediately | $ 6.57 | |||||
| W11676902 | Wiring Harness Parts (harness, Main) (Replaces: 8286437) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| W10491985 | Wiring Harness Parts (screw) (Replaces: 3196160) |
|
Immediately | $ 6.80 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 4455805 | Wiring Harness Parts (grommet, Harness) |
|
- | ||||||
| WP3400015 | Wiring Harness Parts (screw) (Replaces: 3400015) |
|
$ 6.80 | ||||||
| W10005720 | Wiring Harness Parts (cord, Power) |
|
- | ||||||
| 16515 | Wiring Harness Parts (clip) (Replaces: 313438) |
|
$ 18.48 |
