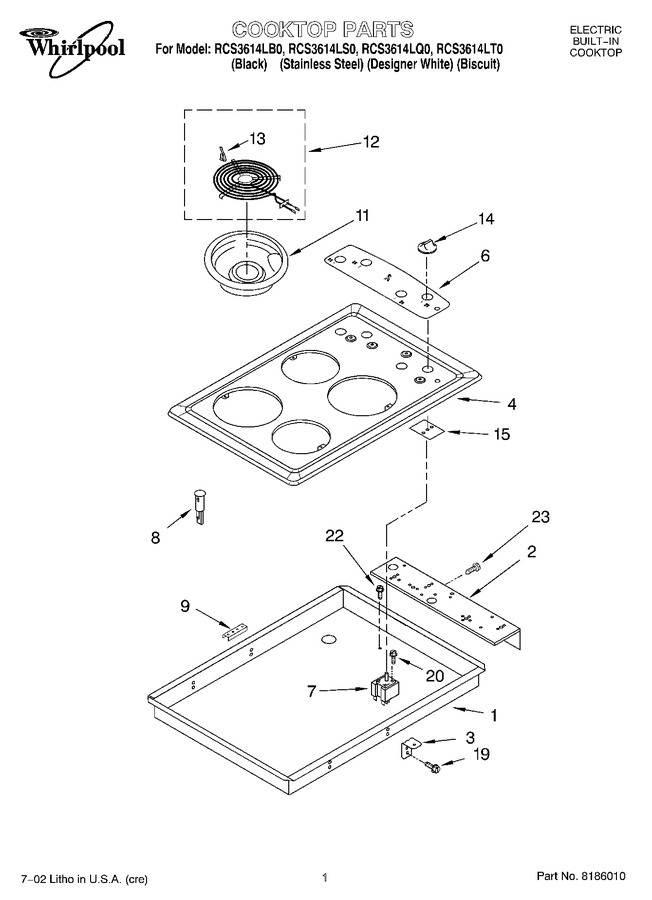

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192571 | Burner Box |
|
- | |||||
| 2 | 3192110 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3192454 | Bracket, Mounting |
|
- | |||||
| 4 | 8284710 | Cooktop (biscuit) |
|
- | |||||
| 4 | 3191175 | Cooktop (stainless Steel) |
|
- | |||||
| 4 | 3191397 | Cooktop (designer White) |
|
- | |||||
| 4 | 3191396 | Cooktop (black) |
|
- | |||||
| 6 | 8285120 | Panel, Control (white) |
|
- | |||||
| 6 | 8285119 | Panel, Control (black) |
|
- | |||||
| 6 | 8285121 | Panel, Control (biscuit) |
|
- | |||||
| 7 | WP3191472 | Switch Infinite (use W/8`` Element (silver Shaft)) (Replaces: 3191472) |
|
$ 158.38 | |||||
| 7 | WP3191471 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191471) |
|
$ 179.06 | |||||
| 8 | WP4456181 | Light, Indicator (2) (Replaces: 3191491) |
|
$ 100.13 | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 9 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan (2)) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan, Surface (8`` Pan (2)) (Replaces: 3195209) |
|
Immediately | $ 19.64 | ||||
| 12 | WP3191454 | Unit, Surface (2) 8`` (240v) (Replaces: 3191454) |
|
$ 171.81 | |||||
| 12 | WP660532 | Unit, Surface (2) 6`` (240v) (Replaces: 8053266) |
|
Immediately | $ 45.10 | ||||
| 13 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 7.31 | ||||
| 14 | WP8522565 | Knob, Control (4) (white) (Replaces: 8522565) |
|
Immediately | $ 18.81 | ||||
| 14 | 8522567 | Knob, Control (4) (biscuit) |
|
$ 15.97 | |||||
| 14 | WP8522566 | Knob, Control (4) (black) (Replaces: 8522566) |
|
$ 20.06 | |||||
| 15 | 3183956 | Seal, Switch Shaft (4) |
|
$ 43.89 | |||||
| 19 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 3400855 | Screw, 8-32 X 1/4 |
|
- | |||||
| 22 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.80 | |||||
| 23 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| LIT4455835 | Installation Instructions |
|
- | ||||||
| 4455805 | Grommet, Conduit |
|
- | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 78.23 | ||||||
| 4456058 | Conduit Assembly |
|
- | ||||||
| 4455592 | Harness, Wire (light) |
|
- | ||||||
| 3191226 | Harness, Wiring (includes Element Receptacles) |
|
- | ||||||
| LIT3192107 | Wiring Diagram |
|
- | ||||||
| LIT4456058 | Use & Care Guide |
|
- |
