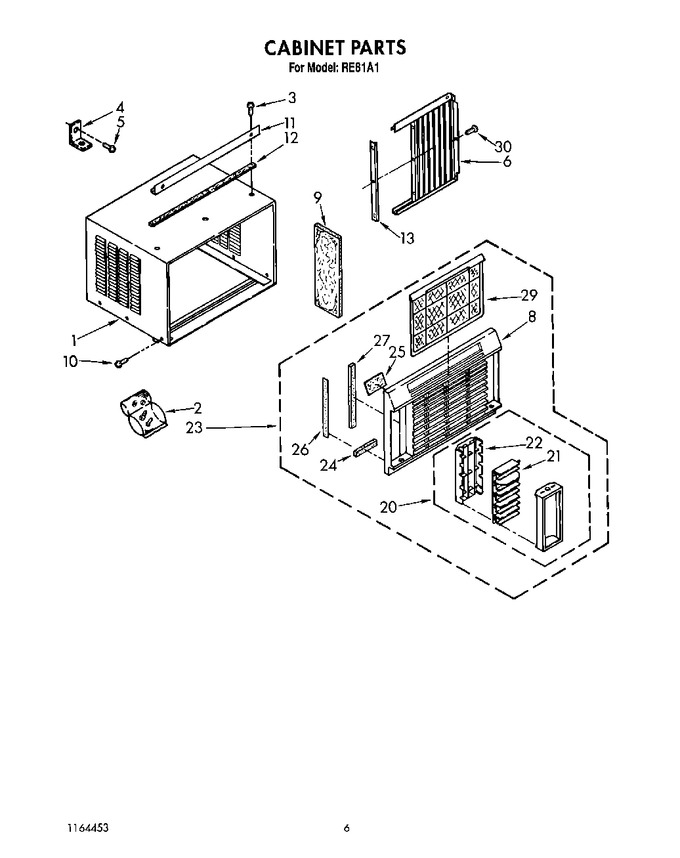

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	1157654		Accessory, Bag		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	644228		Bracket, Window Lock		Appelez-nous	-
5	488255		Screw Wood No.8x3/4		Appelez-nous	-
6	1157665		Curtain (left Side)		Appelez-nous	-
6	1157666		Curtain (right Side)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161747		Insulation, Cabinet Side (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
11	1157196		Chanel, Top		Appelez-nous	-
12	469877		Seal, Meeting Rail		Appelez-nous	-
13	644224		Retainer, Curtain (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1159333		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1161557		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1161205		Seal Front (2)		Appelez-nous	-
29	1156976		Filter		Appelez-nous	-
30	1161561		Screw 3/8 Sg		Appelez-nous	-
