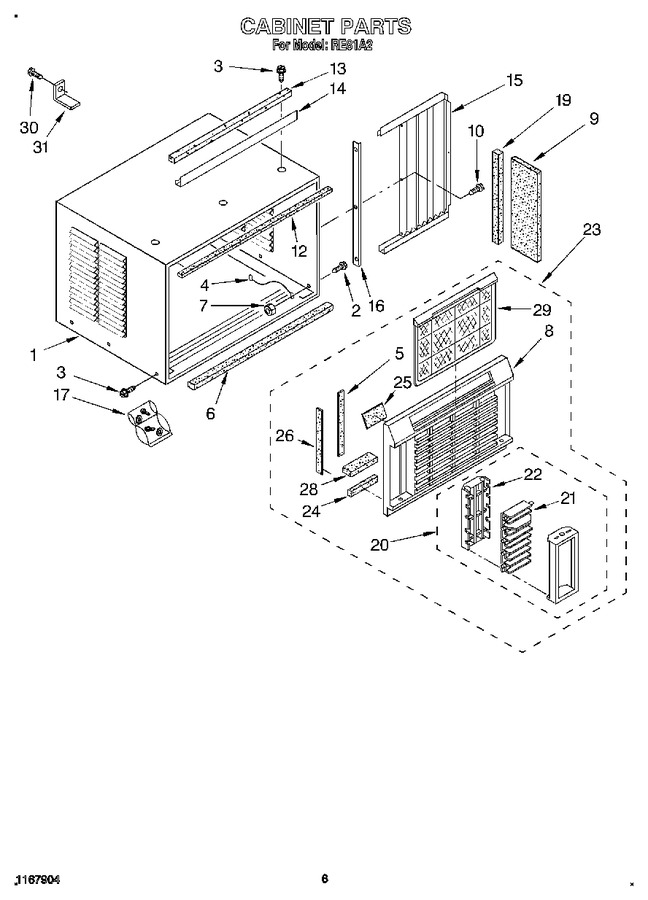

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	488853		Screw, 8-32 X 3/8		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	856094		Wire, Ground		Appelez-nous	-
5	1161747		Insulation, Side (2)		Appelez-nous	-
6	1159289		Seal		Appelez-nous	-
7	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	1157196		Chanel, Top		Appelez-nous	-
14	469877		Seal, Meeting Rail		Appelez-nous	-
15	1164406		Curtain (r.s.)		Appelez-nous	-
15	1164405		Curtain (l.s.)		Appelez-nous	-
16	644224		Retainer, Curtain		Appelez-nous	-
17	1157654		Accessory, Bag		Appelez-nous	-
19	1159254		Seal, Strip		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1159333		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1161557		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
28	1161205		Seal (2)		Appelez-nous	-
29	1156976		Filter		Appelez-nous	-
30	488255		Screw, Wood		Appelez-nous	-
31	644228		Bracket, Window Lock		Appelez-nous	-
