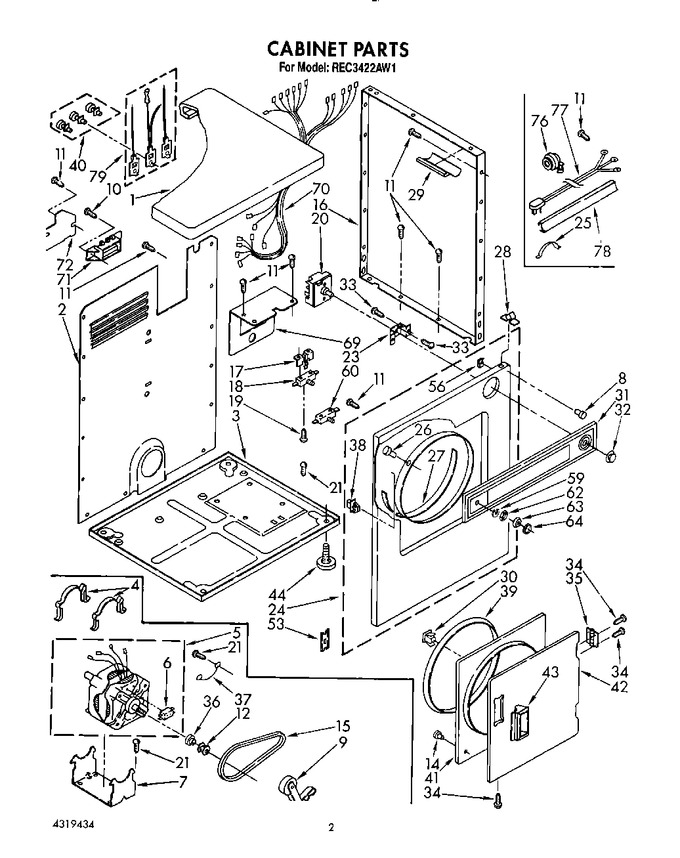

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4319405 | Top (almond) |
|
- | |||||
| 1 | 345703 | Top (white) (Replaces: 4319377) |
|
$ 261.58 | |||||
| 2 | 4319396 | Panel, Rear (240 Volt) |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 4319418) |
|
$ 292.16 | |||||
| 4 | WP660658 | Clip, Motor (2) (Replaces: 4319313) |
|
$ 8.22 | |||||
| 5 | 279827 | Motor, 60 Hz. (Replaces: 3391887) |
|
Immediately | $ 217.20 | ||||
| 6 | 279827 | Switch (use W/3391887 Motor) (Replaces: 3388235) |
|
Immediately | $ 217.20 | ||||
| 7 | 696541 | Base, Motor |
|
$ 97.86 | |||||
| 8 | 307563 | Rivet, Plastic (4) |
|
- | |||||
| 9 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 10 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 11 | WP681414 | Screw, 10-32 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 12 | W10837625 | Pulley 60 Hz (Replaces: 3389729) |
|
Immediately | $ 12.77 | ||||
| 14 | 238614 | Bumper |
|
$ 84.79 | |||||
| 15 | 3394652 | Belt, Drive |
|
Immediately | $ 52.32 | ||||
| 16 | 4319406 | Panel, Side (almond) |
|
- | |||||
| 16 | 4319382 | Panel, Side (white) |
|
- | |||||
| 17 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.49 | ||||
| 18 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 19 | WP98129 | Screw, 6-20 X 1-3/8 (2) (Replaces: 98129) |
|
$ 8.18 | |||||
| 20 | 690621 | Timer, 60 Hz. |
|
- | |||||
| 21 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 23 | 348171 | Bracket, Timer (Replaces: 4319376) |
|
- | |||||
| 24 | 4319408 | Front Panel Assembly (xalmond) |
|
- | |||||
| 24 | 280044 | Front Panel Assembly (xwhite) (Replaces: 4319385) |
|
$ 335.16 | |||||
| 25 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 26 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 85.45 | ||||
| 28 | WP345670 | Lock, Top (2) (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 29 | 9830279 | Protector, Support (11 1/2 ``) |
|
- | |||||
| 30 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 7.29 | ||||
| 31 | 9830192 | Panel, Control |
|
- | |||||
| 32 | 9830050 | Timer Knob & Skirt Assembly |
|
- | |||||
| 33 | W11808444 | Screw, 8-32 X 5/16 (2) (Replaces: 98139) |
|
- | |||||
| 34 | WP694091 | Screw (4) (Replaces: 694091) |
|
$ 7.55 | |||||
| 35 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 4319328) |
|
$ 9.32 | |||||
| 36 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 37 | 4319390 | Wire, Ground |
|
- | |||||
| 38 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 56.31 | |||||
| 40 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 41 | 4319397 | Door, Rear |
|
- | |||||
| 42 | 4319333 | Door, Front (almond) |
|
- | |||||
| 42 | 4319327 | Door, Front (white) |
|
- | |||||
| 43 | WP3405184 | Handle, Door (white) (Replaces: 4319329) |
|
$ 79.81 | |||||
| 43 | 4319334 | Handle, Door (almond) |
|
- | |||||
| 44 | WP233550 | Foot (4) (Replaces: 233550) |
|
$ 8.35 | |||||
| 53 | W10854425 | Clip (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 56 | WP98234 | Clip (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 59 | 688193 | Lockwasher |
|
- | |||||
| 60 | 689038 | Switch, Push-to-start |
|
- | |||||
| 62 | 90891 | Nut, Hex |
|
- | |||||
| 63 | 345530 | Ring, Trim |
|
- | |||||
| 64 | 688041 | Nut, Knurled |
|
- | |||||
| 69 | 279304 | Bracket, Terminal (Replaces: 690259) |
|
- | |||||
| 70 | 4319417 | Harness, Wiring |
|
- | |||||
| 71 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 72 | W11736322 | Cover, Terminal Block (Replaces: 4319465) |
|
- | |||||
| 76 | W11712577 | Clip, Strain Relief (power Cord) (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 77 | PT220L | Cord, Power (Replaces: 3389955) |
|
$ 43.21 | |||||
| 78 | 686768 | Protector, Harness (7``) |
|
- | |||||
| 78 | 686770 | Protector, Harness (16``) |
|
- | |||||
| 79 | 279318 | Terminal, Tinned & Brass (includes Illus. 40) |
|
Immediately | $ 106.04 |
