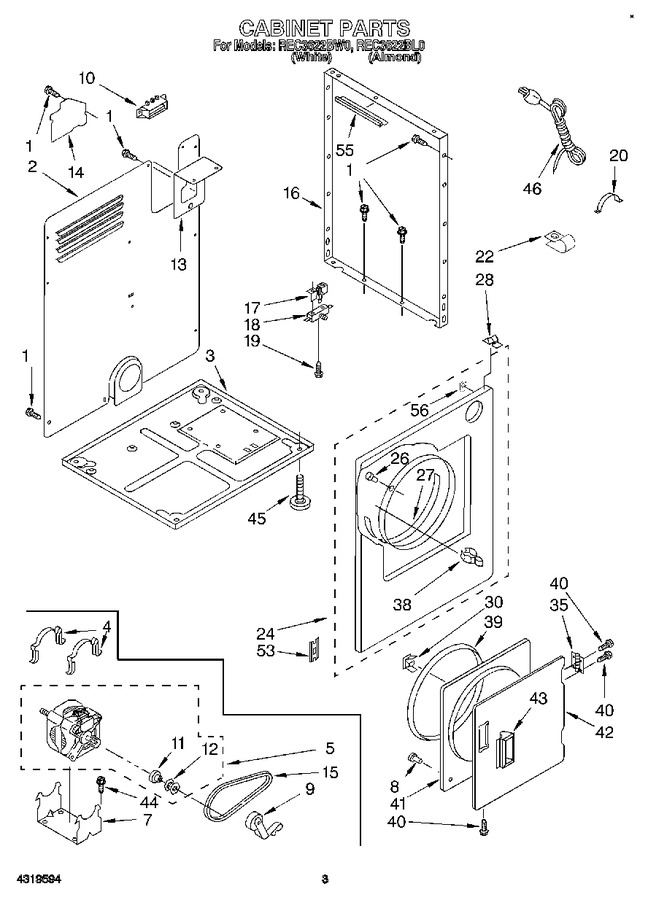

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 2 | 4319396 | Panel, Rear |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 4319418) |
|
$ 292.16 | |||||
| 4 | WP660658 | Clip, Motor (2) (Replaces: 4319313) |
|
$ 8.22 | |||||
| 5 | 279827 | Motor, 60 Hz. (Replaces: 3398046) |
|
Immediately | $ 217.20 | ||||
| 7 | 696541 | Base, Motor |
|
$ 97.86 | |||||
| 8 | 238614 | Bumper |
|
$ 84.79 | |||||
| 9 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 10 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 11 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 12 | 8066051 | Pulley, Motor 60 Hz. (Replaces: 3396426) |
|
$ 118.78 | |||||
| 13 | 279304 | Support, Terminal Block (Replaces: 4319500) |
|
- | |||||
| 14 | W11736322 | Cover, Terminal Block (Replaces: 4319465) |
|
- | |||||
| 15 | 3394652 | Belt, Drive |
|
Immediately | $ 52.32 | ||||
| 16 | 4319406 | Panel, Side (2) (almond) |
|
- | |||||
| 16 | 4319382 | Panel, Side (2) (white) |
|
- | |||||
| 17 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.49 | ||||
| 18 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 19 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 8.18 | |||||
| 20 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.64 | |||||
| 22 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 24 | 280044 | Front Panel (white) (Replaces: 4319385) |
|
$ 335.16 | |||||
| 24 | 4319408 | Front Panel (almond) |
|
- | |||||
| 26 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 85.45 | ||||
| 28 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 30 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 7.29 | ||||
| 35 | 9830792 | Hinge & Pin Assembly (2) |
|
- | |||||
| 38 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 40 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.55 | |||||
| 41 | 4319397 | Door, Rear |
|
- | |||||
| 42 | 4319327 | Door, Front (white) |
|
- | |||||
| 42 | 4319333 | Door, Front (almond) |
|
- | |||||
| 43 | WP3405184 | Handle, Door (white) (Replaces: 4319329) |
|
$ 79.81 | |||||
| 43 | 4319334 | Handle, Door (almond) |
|
- | |||||
| 44 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 45 | WP233550 | Foot (4) (Replaces: 233550) |
|
$ 8.35 | |||||
| 46 | PT220L | Cord, Power (Replaces: 3389955) |
|
$ 43.21 | |||||
| 53 | W10854425 | Clip (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 55 | 686770 | Protector Support |
|
- | |||||
| 56 | WP98234 | Clip, Panel (2) (Replaces: 98234) |
|
Immediately | $ 11.96 |
