SELECT A DIAGRAM

01 - Top And Console Parts

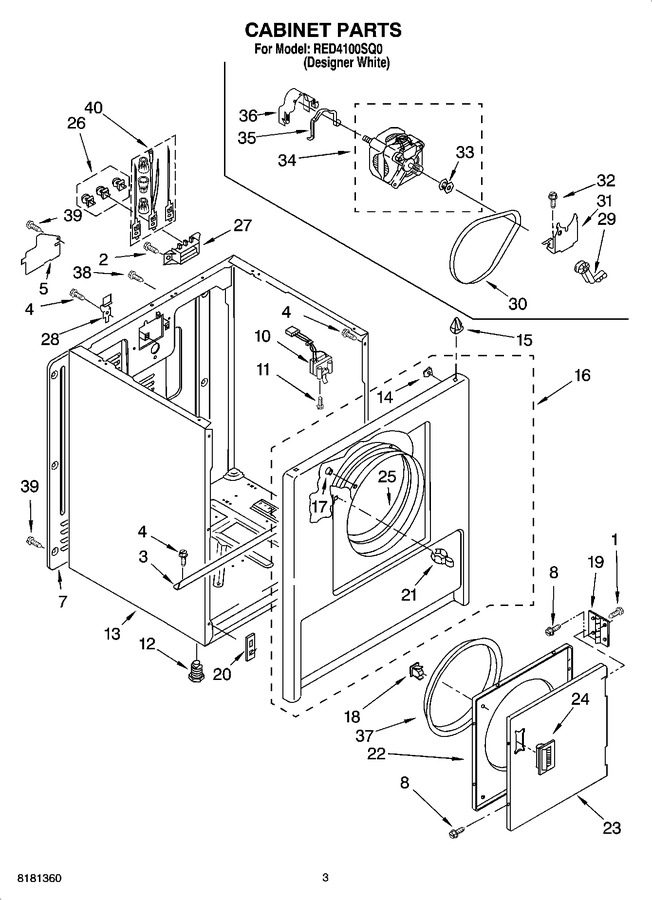

02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.30
2	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
3	8541400		Bracket, Cabinet		Appelez-nous	-
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
5	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 566.78
7	3396807		Panel, Rear		Appelez-nous	-
8	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 6.80
10	WP3406102		Door Switch Assembly   (Replaces: 3406102)				$ 37.49
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
12	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
12	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
13	8533643		Cabinet (includes Illus. 3)   (Replaces: 8530603)				$ 377.30
14	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.76
15	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 11.98
16	693197		Front Panel Assembly		Appelez-nous	-
17	279220		Clip, Felt Pad   (Replaces: 685203)				$ 21.20
18	WP3389441		Catch, Door   (Replaces: 3389441)			Immediately	$ 6.56
19	WP348023		Hinge And Pin Assembly (2)   (Replaces: 348023)				$ 8.39
20	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 14.71
21	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
22	280077		Door, Rear   (Replaces: 695656)				$ 186.71
23	WP348205		Door, Front   (Replaces: 348205)			Immediately	$ 139.28
24	WP686711		Handle, Door   (Replaces: 686711)			Immediately	$ 7.52
25	279264		Seal & Bearing Assembly   (Replaces: 8066123)			Immediately	$ 76.91
26	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 50.09
27	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
28	WP8066217		Hinge, Top (2)   (Replaces: 8066217)				$ 7.39
29	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
30	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 16.34
31	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 114.89
32	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 12.64
33	WP8066184		Pulley, 60 Hz.   (Replaces: 8066184)			Immediately	$ 45.92
34	279827		Motor Assembly 60 Hz.   (Replaces: 8066206)			Immediately	$ 195.48
35	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
36	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.39
37	W11613302		Seal, Door   (Replaces: 3390734)				$ 50.68
38	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 7.38
39	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
40	279318		Terminal, Tinned & Brass (3) (includes Illus. 40)			Immediately	$ 95.44

    View Diagram in Separate Window       Print Part List
