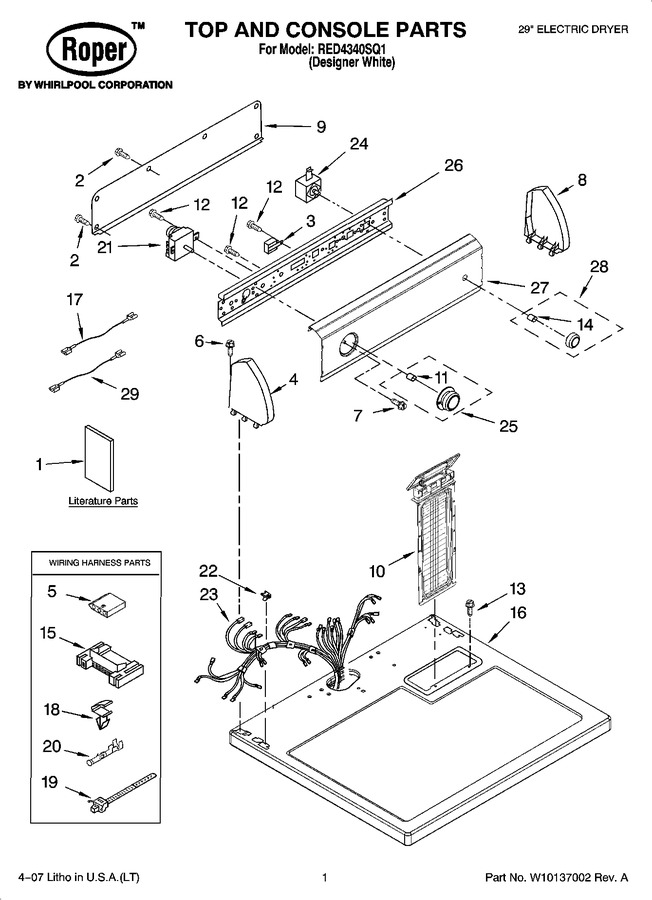

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8577187 | Instructions, Installation |
|
- | |||||
| 1 | 8578192 | Guide, Use & Care |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10043010 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 8576793 | Wiring Diagram |
|
- | |||||
| 2 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 78.81 | |||||
| 5 | 3936144 | Connector |
|
$ 19.10 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 78.81 | |||||
| 9 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 8558467) |
|
Immediately | $ 60.31 | ||||
| 11 | WP688805 | Spring Clip, Knob (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | 3393814 | Wire, Jumper (black) |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | 3391249 | Tie, Cable |
|
- | |||||
| 20 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 21 | WP8299781 | Timer, 60 Hz. (Replaces: 8299781) |
|
Immediately | $ 342.50 | ||||
| 22 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 23 | WPW10450292 | Harness, Wiring (Replaces: 8576500) |
|
$ 251.39 | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 25 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 53.65 | |||||
| 26 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 27 | 8579655 | Panel, Control |
|
- | |||||
| 28 | 8538959 | Knob, Push-to-start |
|
$ 25.38 | |||||
| 29 | 3393815 | Wire, Jumper (blue) |
|
- |
