SELECT A DIAGRAM

01 - Cabinet Parts

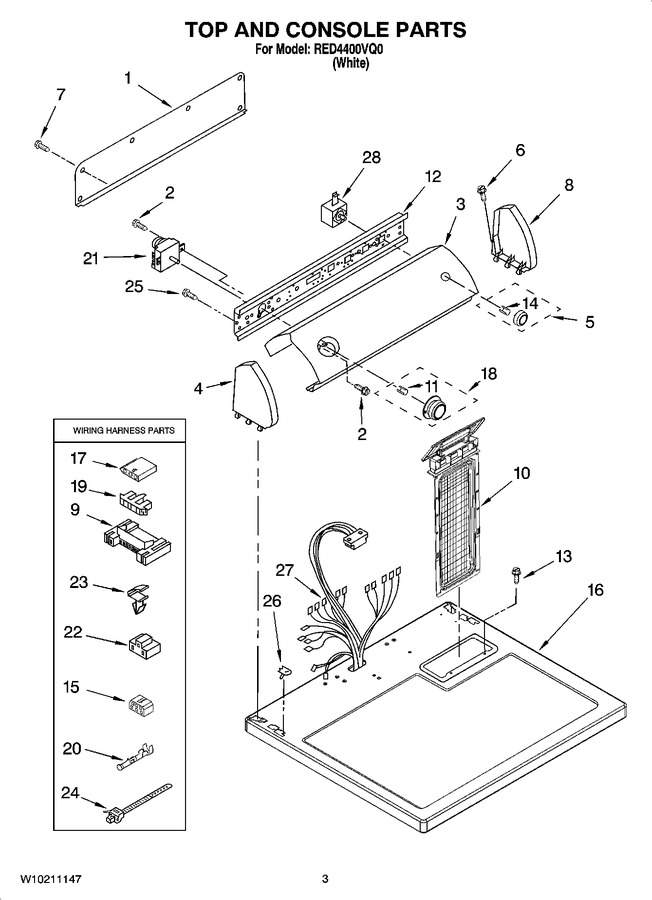

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
3	W10205688		Panel, Control		Appelez-nous	-
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
5	8538959		Knob, Push-to-start				$ 25.38
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
9	3395683		Housing, Connector (motor)			Immediately	$ 49.01
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 7.38
12	8271418		Bracket, Control				$ 57.15
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	3347243		Connector 6-circuit		Appelez-nous	-
16	8557930		Top		Appelez-nous	-
17	3936144		Connector				$ 19.10
18	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
19	3397269		Connector, Timer				$ 25.55
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
21	WP8299781		Timer   (Replaces: 8299781)			Immediately	$ 342.50
22	3401144		Connector, (pts Relay)				$ 11.53
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
24	3391249		Tie, Cable		Appelez-nous	-
25	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
26	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
27	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 251.39
28	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99

    View Diagram in Separate Window       Print Part List
