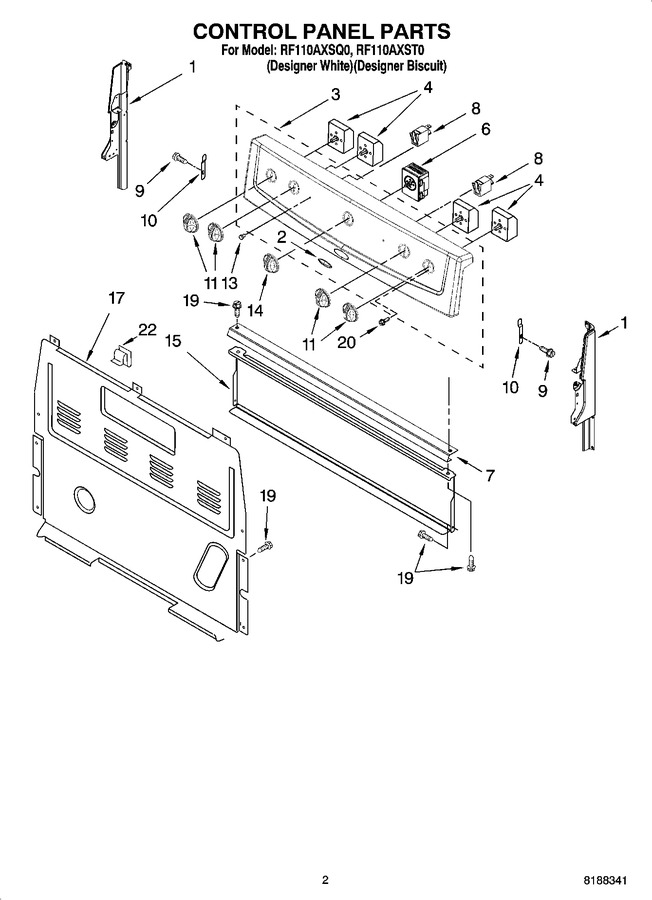

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10009060		Endcap (left Hand Biscuit)		Appelez-nous	-
1	W11219365		Endcap (left Hand White)   (Replaces: W10009040)				$ 38.21
1	W11230612		Endcap (right Hand Biscuit)   (Replaces: W10009070)		Appelez-nous	-
1	W11219370		Endcap (right Hand White)   (Replaces: W10009050)				$ 54.75
2	9757609		Nameplate				$ 33.27
3	9762010		Panel, Backguard (white)		Appelez-nous	-
3	9762011		Panel, Backguard (biscuit)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 49.03
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 49.03
6	WP9762215		Cntrl-elec Roc60   (Replaces: 9762215)			Immediately	$ 328.65
7	9762095		Brkt-mntg, Console		Appelez-nous	-
8	WP8523266		Indicator, Oven   (Replaces: 8523266)				$ 105.75
9	3196166		Screw				$ 6.62
10	3196200		Clip, Spring (2)				$ 9.41
11	WP9761963		Knob (4) (biscuit)   (Replaces: 9761963)				$ 18.70
11	WP9761962		Knob (4) (white)   (Replaces: 9761962)			Immediately	$ 18.59
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 5.63
14	9762526		Knob, Thermostat (white)				$ 17.00
14	9762525		Knob, Thermostat (biscuit)		Appelez-nous	-
15	8053912		Shield, Heat				$ 34.55
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
20	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
22	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
