01 - Cooktop Parts
02 - Control Panel Parts

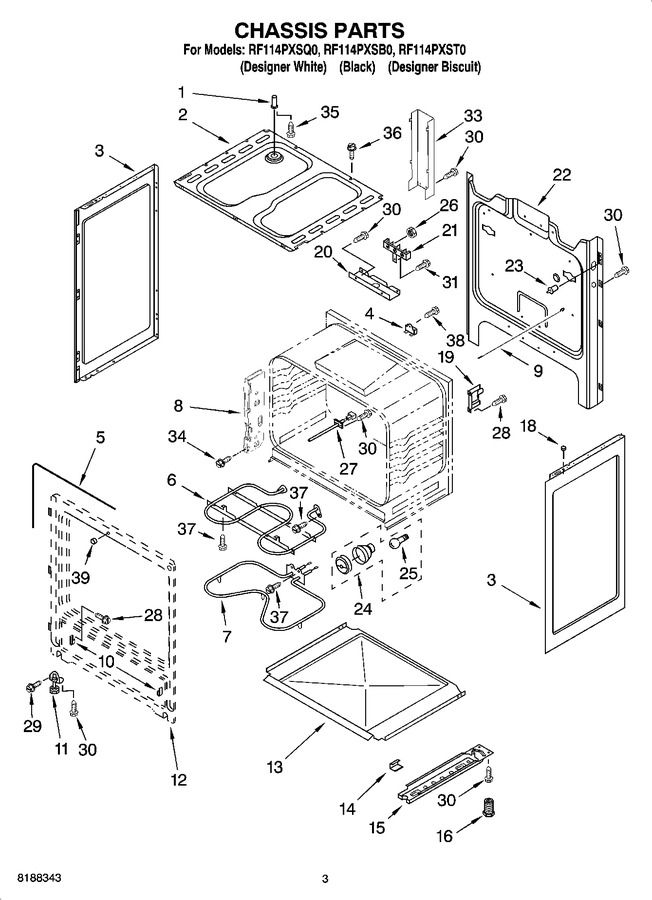

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 3169143) |
|
$ 93.87 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 236.07 | |||||
| 3 | W11730303 | Panel, Side (2) (black-textured) (Replaces: 8053832) |
|
Immediately | $ 160.65 | ||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 182.19 | |||||
| 3 | W10162246 | Panel, Side (2) (biscuit-textured) (Replaces: 8272519) |
|
$ 185.32 | |||||
| 4 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 3186152) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 172.30 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 9758541) |
|
Immediately | $ 64.67 | ||||
| 8 | W10647259 | Bracket-mounting (Replaces: 9760407) |
|
Immediately | $ 8.39 | ||||
| 9 | 9757239 | Rod - Door Switch |
|
$ 86.73 | |||||
| 10 | WPW10114344 | Glide, Drawer Front (Replaces: 9759785) |
|
Immediately | $ 7.71 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 78.41 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: 9761935) |
|
Immediately | $ 7.42 | ||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 76.31 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 43.16 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.77 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: 8273902) |
|
Immediately | $ 96.15 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 16.74 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 33 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 125.64 | |||||
| 34 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 35 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 7.25 | |||||
| 36 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| 38 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 39 | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 103.60 | |||||
| 39 | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 52.37 | ||||
| 39 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 |
