SELECT A DIAGRAM

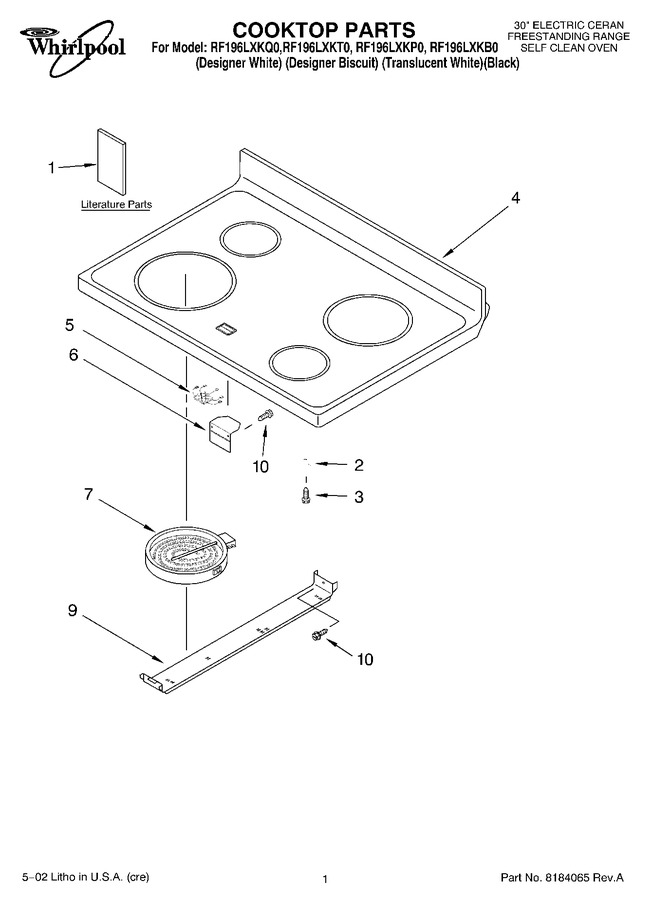

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Door
05 - Drawer And Broiler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053714 | Literature (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature (installation (templet)) |
|
- | |||||
| 1 | LIT8522771 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8053294 | Literature (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.80 | |||||
| 4 | 8273799 | Cooktop (biscuit Glass) |
|
- | |||||
| 4 | 8053550 | Cooktop (black) |
|
- | |||||
| 4 | 8053548 | Cooktop (white/white Glass) |
|
- | |||||
| 4 | 8522962 | Cooktop (translucent White) |
|
- | |||||
| 5 | 8273009 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3196103 | Bracket, Ind Light |
|
- | |||||
| 7 | WPW10242957 | Element, Surface (1800 W - Rr) (Replaces: 8272568) |
|
$ 324.59 | |||||
| 7 | W10823699 | Element, Surface (1200 W - Rf) (Replaces: 8272564) |
|
Immediately | $ 152.96 | ||||
| 9 | 3196454 | Bracket, Element |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
