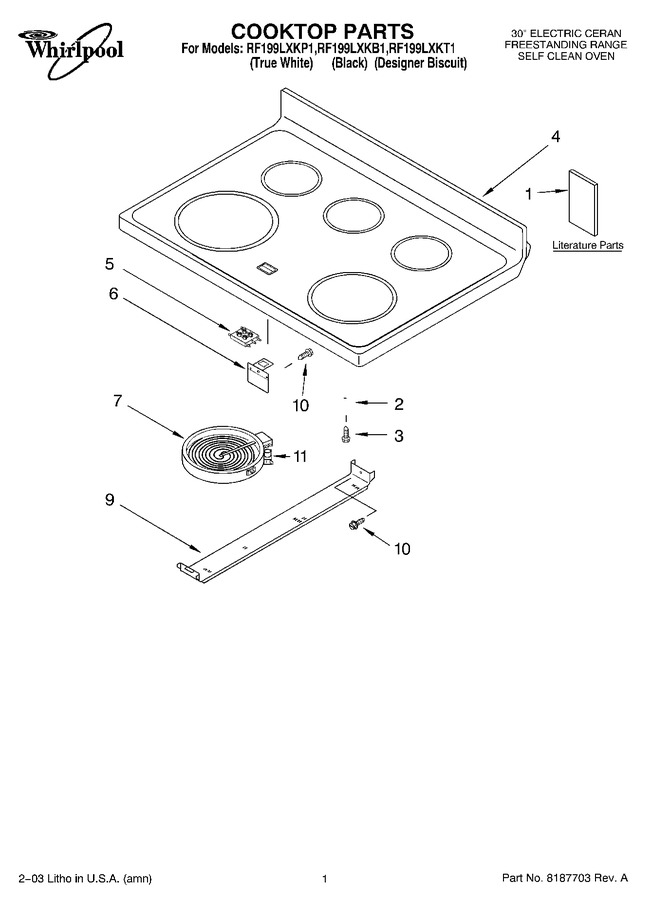

01 - Cooktop Parts
02 - Door Parts
03 - Chassis Parts
04 - Control Panel Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8523048 | Literature Parts (installation Instruction, (template)) |
|
- | |||||
| 1 | LIT8522773 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8522647 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8522958 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.80 | |||||
| 4 | 8272515 | Cooktop (biscuit) |
|
- | |||||
| 4 | 8522594 | Cooktop (white) |
|
- | |||||
| 4 | 8053223 | Cooktop (black) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823711 | Element, Surface (includes 8) (1200 W - Rr) (Replaces: 8523698) |
|
Immediately | $ 227.75 | ||||
| 7 | WP8523699 | Element, Surface (includes 8) (100 W - Cr) (Replaces: 8523699) |
|
$ 162.40 | |||||
| 7 | W10823696 | Element, Surface (includes 8) (2500 W - Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 7 | W10823698 | Element, Surface (includes 8) (1800 W - Rf) (Replaces: 8523696) |
|
Immediately | $ 213.08 | ||||
| 9 | 8273720 | Bracket, Element ((1) Back Center) |
|
- | |||||
| 9 | 8272791 | Bracket, Element ((2)) |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 11 | WP3196068 | Light, Indicator (used On 8273641) (Replaces: 3196068) |
|
Immediately | $ 5.63 |
