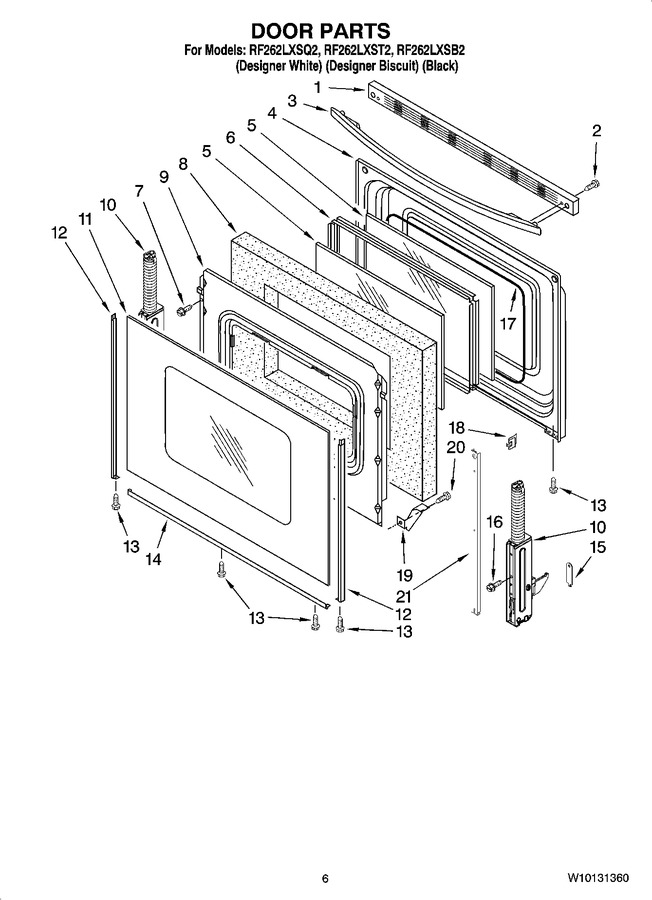

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9762391		Trim, Top (black)   (Replaces: 9762391)				$ 188.07
1	9761975		Trim, Top (white)				$ 82.31
1	9761976		Trim, Top (biscuit)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 9.93
3	9761982		Handle, Door (white)				$ 125.85
3	9761984		Handle, Door (biscuit)		Appelez-nous	-
3	9761983		Handle, Door (black)				$ 116.42
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WP8053948		Glass, Inner (2)   (Replaces: 9758162)			Immediately	$ 208.85
6	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 81.08
7	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 91.23
9	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 209.98
10	W10347466		Hinge, Door   (Replaces: 9761493)			Immediately	$ 197.86
11	WPW10118455		Glass, Outer Door (black)   (Replaces: W10075990)			Immediately	$ 299.43
11	WPW10118454		Glass, Outer Door (white)   (Replaces: W10075980)				$ 292.42
11	W10076000		Glass, Outer Door (biscuit)		Appelez-nous	-
12	W10761018		Trim, Door Side (black L.h.)   (Replaces: 8523171)			Immediately	$ 49.32
12	W10761014		Trim, Door Side (black R.h.)   (Replaces: 8523165)			Immediately	$ 65.66
12	WP8523172		Trim, Door Side (white L.h.)   (Replaces: 8523172)			Immediately	$ 62.94
12	WP8523166		Trim, Door Side (white R.h.)   (Replaces: 8523166)			Immediately	$ 75.81
12	WP8523173		Trim, Door Side (biscuit L.h.)   (Replaces: 8523173)				$ 111.18
12	WP8523167		Trim, Door Side (biscuit R.h.)   (Replaces: 8523167)				$ 107.19
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
14	WP8523177		Trim, Lower Door (black)   (Replaces: 8523177)				$ 149.27
14	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 55.23
14	WP8523178		Trim, Lower Door (biscuit)   (Replaces: 8523178)				$ 145.59
15	9761517		Clip, Door Mntg (2)				$ 43.30
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
17	8522414		Seal, Window				$ 160.59
18	3196025		Clip, Glass (6)				$ 20.10
19	3196794		Bracket, Window (2)				$ 24.34
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
21	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 24.91
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 48.61
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 78.50
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 52.37
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 52.37
	WP3196174		Screw (grnd Wire/back)   (Replaces: 3196174)			Immediately	$ 7.60
	8524132		Shield, Wiring		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 12.86
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	313660		Clip, Wire Ground		Appelez-nous	-
	W10095540		Harness, Wire (main)		Appelez-nous	-
	WP3196154		Screw   (Replaces: 3196154)				$ 7.60
	3184020		Wire, Ground   (Replaces: 8523279)				$ 78.23
	W11172524		Harness, Wire (sensor/dr Switch)   (Replaces: W10084660)				$ 195.47
	W10114894		Harness, Wire (cooktop Right)		Appelez-nous	-
	W10114915		Harness, Wire (cooktop Left)		Appelez-nous	-
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 25.69
	4396923		Pan - Broiler			Immediately	$ 54.64
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	3191048		Cleaner, Glass		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 84.73
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 53.90
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
