SELECT A DIAGRAM

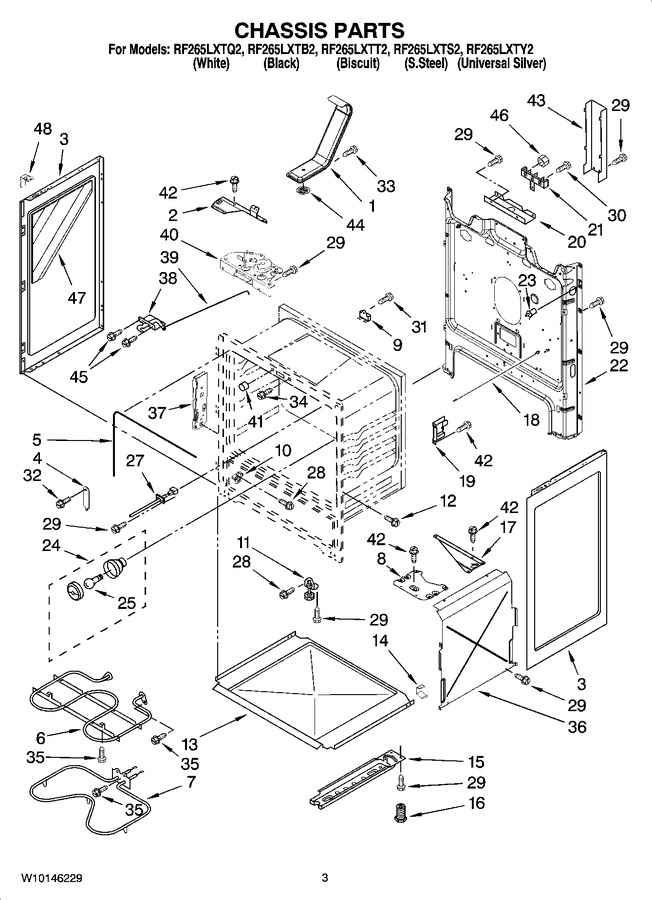

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10134285		Vent Tube Asmbly   (Replaces: 9761299)			Immediately	$ 236.70
2	8273905		Support, Corner Lr		Appelez-nous	-
3	W10162246		Panel, Side (2) (biscuit)   (Replaces: 8272519)				$ 185.32
3	W11730303		Panel, Side (2) (black)   (Replaces: 8053832)			Immediately	$ 160.65
3	WPW10575396		Panel, Side (2) (white)   (Replaces: 8053830)				$ 182.19
4	9761517		Clip, Door Mntg (2)				$ 43.30
5	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 45.18
6	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 172.30
7	WPW10308477		Element, Bake (hidden)   (Replaces: 9758541)			Immediately	$ 64.67
8	3195736		Support, Front (2)		Appelez-nous	-
9	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
10	WPW10114344		Glide, Drwr Top   (Replaces: W10114344)			Immediately	$ 7.71
11	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 78.41
12	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
13	WP8054068		Tray, Insulation   (Replaces: 8054068)				$ 93.92
14	3196576		Clip, Panel (6)		Appelez-nous	-
15	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 56.39
16	WPW10058460		Foot, Rear (2)   (Replaces: W10058460)			Immediately	$ 7.42
17	3195987		Guard, Wire		Appelez-nous	-
18	9757239		Rod - Dr Switch				$ 86.73
19	W10404688		Support, Oven (2)   (Replaces: 3186116)				$ 15.92
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 43.16
22	8274034		Back, Main				$ 123.95
23	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 146.71
24	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
27	WPW10181986		Sensor, Oven   (Replaces: 8273902)			Immediately	$ 96.15
28	WP98008545		Screw   (Replaces: 3196179)				$ 16.74
29	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
30	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
31	3196172		Screw			Immediately	$ 12.12
32	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
33	WP489491		Screw   (Replaces: 3196566)				$ 6.57
34	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.36
35	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.60
36	W10450380		Retainer, Side (2)   (Replaces: 9758238)		Appelez-nous	-
37	W10647259		Bracket-mounting   (Replaces: 9760407)			Immediately	$ 8.39
38	WP9761013		Latch, Door   (Replaces: 9761013)				$ 230.72
39	W10078380		Rod, Latch				$ 85.42
40	WPW10107820		Latch Asy, Rear   (Replaces: W10107820)				$ 278.60
41	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
42	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
43	WPW10326122		Cover, Box   (Replaces: 9758283)				$ 125.64
44	9761301		Screen, Catalyst				$ 133.11
45	W11169708		Screw (2)   (Replaces: 3196560)				$ 13.36
46	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.77
47	9761490		Insulation		Appelez-nous	-
48	8053915		Insulation, Vent   (Replaces: 8272613)				$ 11.75
48	9761512		Clip, Mounting		Appelez-nous	-
48	WPW10208653		Insulation, Wrap   (Replaces: 8272616)			Immediately	$ 52.37
48	W11311894		Insulation, Back   (Replaces: 8272612)				$ 103.60
