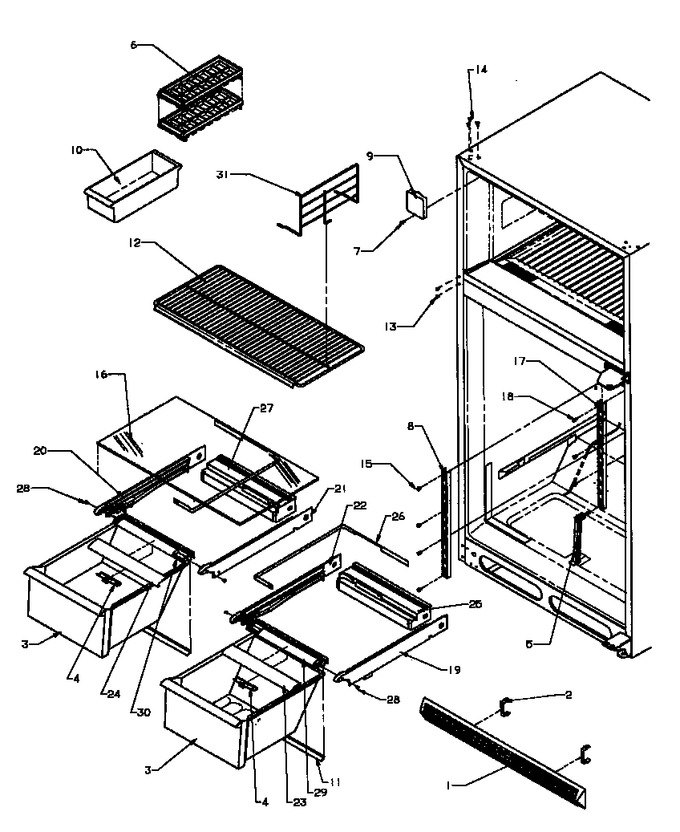

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474902 | Grille, Toe (white) (19) |
|
- | |||||
| 2 | 10551501 | Clip-toe Grille |
|
- | |||||
| 3 | 10430213 | Pan, Crisper |
|
- | |||||
| 4 | 10797501 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 23.27 | ||||
| 6 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 43.06 | ||||
| 7 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 6.57 | ||||
| 8 | D7599002 | Ladder, Center |
|
- | |||||
| 9 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 10 | 10423119 | Bin, Egg |
|
- | |||||
| 11 | 10530202 | Seal, Crisper |
|
- | |||||
| 12 | Y10440001 | Shelf, Wire Frz. (18) |
|
- | |||||
| 13 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 7.39 | ||||
| 14 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 15 | M0230923 | Screw |
|
- | |||||
| 16 | 10370016 | Glass, Shelf (18) |
|
- | |||||
| 17 | D7599105 | Ladder, Side |
|
- | |||||
| 18 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.57 | ||||
| 19 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 20 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 21 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 22 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 23 | 10688007 | Extr. R-crisper Frt |
|
- | |||||
| 24 | 10688010 | Extr. L-crisper Frt |
|
- | |||||
| 25 | 10433805 | Rail, Crisper Back |
|
- | |||||
| 26 | 10467802 | Band, Crisper Control (18-19) |
|
- | |||||
| 27 | 10435605 | Rail, Crisper Back |
|
- | |||||
| 28 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 9.71 | |||||
| 29 | 10687701 | Rail, Crisper Fr0nt(r) |
|
- | |||||
| 30 | 10687702 | Rail, Crisper Front(l) |
|
- | |||||
| 31 | D7806002 | Divider, Wire |
|
- | |||||
| NI | 10698505 | Assy, Crisper Frame |
|
- |
