01 - Compressor Compartment Parts
02 - Fz Door Parts
03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

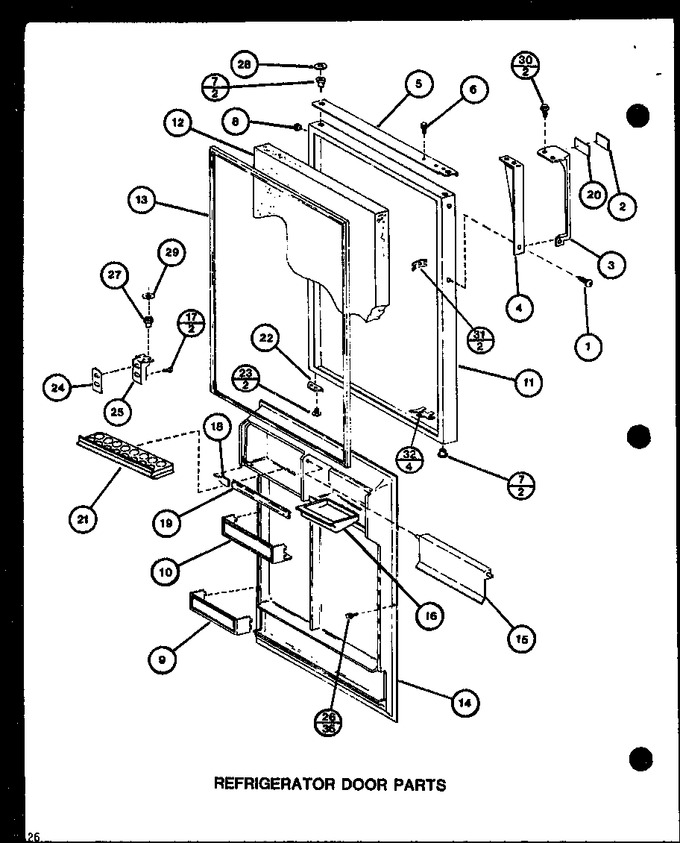

| 1 | M0222418 | Screw |
|
- | |||||
| 2 | C8915804 | Nameplate, Handle |
|
- | |||||
| 3 | D7610602 | Handle Door |
|
- | |||||
| 4 | D7609808 | Pad, Handle |
|
- | |||||
| 5 | C8833707 | Door Cap |
|
- | |||||
| 6 | M0203931 | Screw, Tf |
|
- | |||||
| 7 | C3652901 | Bushing, Hinge Pin |
|
- | |||||
| 7 | C8852202 | Bearing, Hinge |
|
- | |||||
| 8 | WP67001130 | Plug (Replaces: M0310705) |
|
Immediately | $ 7.39 | ||||
| 8 | M0310717 | Plug |
|
- | |||||
| 8 | M0310719 | Plug |
|
- | |||||
| 8 | M0310725 | Plug |
|
- | |||||
| 8 | M0310715 | Plug |
|
- | |||||
| 9 | D7574504 | Retainer Cant Door V |
|
- | |||||
| 10 | D7565404 | Shelf-door V |
|
- | |||||
| 11 | D7728313 | Door Ref L-t-tr18h |
|
- | |||||
| 11 | D7728310 | Door Ref C-t-tr18h |
|
- | |||||
| 11 | D7728312 | Door Ref G-t-tr18h |
|
- | |||||
| 11 | D7728311 | Door Ref A-t-tr18h |
|
- | |||||
| 11 | D7728309 | Door Ref W-t-tr18h |
|
- | |||||
| 12 | B5683507 | Insulation |
|
- | |||||
| 13 | D7605104 | Gasket Bisque |
|
- | |||||
| 14 | D7567001 | Inner Dr Panel-ref |
|
- | |||||
| 15 | D7604410 | Dairy Door |
|
- | |||||
| 16 | D3799802 | Butter Tray |
|
- | |||||
| 17 | M0246258 | Screw |
|
- | |||||
| 18 | B0530006 | Support K |
|
- | |||||
| 19 | C8907201 | Retainer Pkg |
|
- | |||||
| 20 | C8920501 | Pad, Nameplate |
|
- | |||||
| 21 | D7587808 | Egg Tray |
|
- | |||||
| 22 | C8894802 | Door Stop |
|
- | |||||
| 23 | M0203458 | Screw |
|
- | |||||
| 24 | B5744802 | Shim |
|
- | |||||
| 24 | B5744803 | Shim |
|
- | |||||
| 24 | B5744801 | Kit,btm Hinge Shim |
|
- | |||||
| 25 | C8814803 | Bracket Lower Hinge |
|
- | |||||
| 26 | M0219717 | Screw |
|
- | |||||
| 27 | C8814901 | Pin, Hinge K |
|
- | |||||
| 28 | M0274049 | Washer |
|
- | |||||
| 29 | M0274050 | Washer |
|
- | |||||
| 30 | M0203858 | Screw |
|
- | |||||
| 31 | B8361401 | Nut |
|
- | |||||
| 32 | B8363501 | Nut |
|
- |
