01 - Compressor Compartment Parts


02 - Fz Door Paris


03 - Interior Accessories


04 - Rear Components

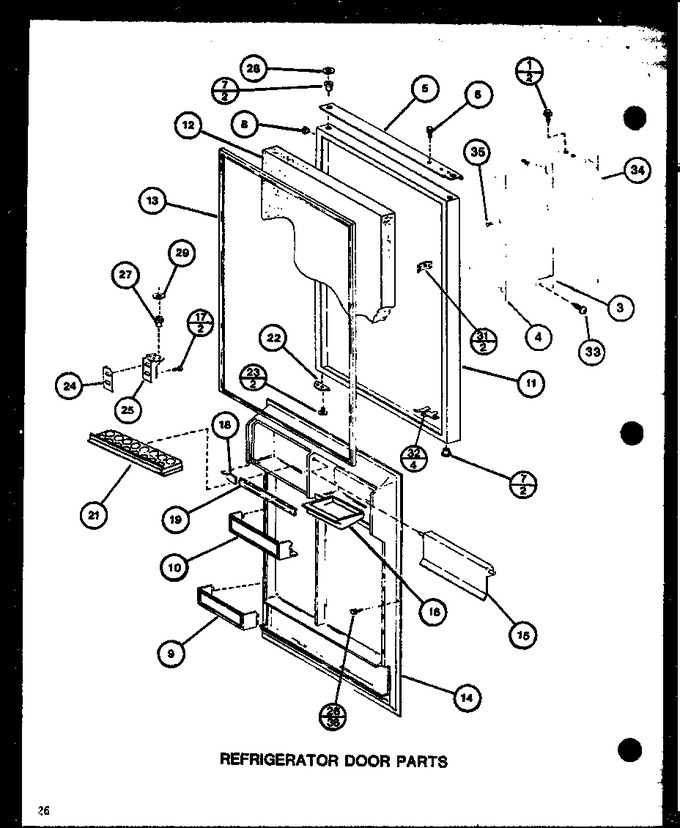

05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0222418		Screw		Appelez-nous	-
3	D7744802		Door Handle		Appelez-nous	-
4	D7745002		Pad, Handle Ref		Appelez-nous	-
5	C8833707		Door Cap		Appelez-nous	-
6	M0203931		Screw, Tf		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
8	M0311301		Plug Button		Appelez-nous	-
8	M0311302		Plug Button		Appelez-nous	-
8	M0311303		Plug Button		Appelez-nous	-
9	D7574504		Retainer Cant Door V		Appelez-nous	-
10	D7565404		Shelf-door V		Appelez-nous	-
11	D7745303		Door Ref L Tr18		Appelez-nous	-
11	D7745302		Door Ref G Tr18		Appelez-nous	-
11	D7745301		Dr Ref W Tr18		Appelez-nous	-
12	B5683507		Insulation		Appelez-nous	-
13	D7605104		Gasket Bisque		Appelez-nous	-
14	D7567008		Inner Dr Panel Ref		Appelez-nous	-
15	D7604410		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
17	M0246258		Screw		Appelez-nous	-
18	B0530006		Support K		Appelez-nous	-
19	C8907201		Retainer Pkg		Appelez-nous	-
22	C8894802		Door Stop		Appelez-nous	-
23	M0203458		Screw		Appelez-nous	-
24	B5744802		Shim		Appelez-nous	-
24	B5744803		Shim		Appelez-nous	-
24	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
25	C8814803		Bracket Lower Hinge		Appelez-nous	-
26	M0219717		Screw		Appelez-nous	-
27	C8814901		Pin, Hinge K		Appelez-nous	-
28	M0274049		Washer		Appelez-nous	-
29	M0274050		Washer		Appelez-nous	-
31	B8361401		Nut		Appelez-nous	-
32	B8363501		Nut		Appelez-nous	-
33	M0203931		Screw, Tf		Appelez-nous	-
34	D7744902		Pad Outer Handle		Appelez-nous	-
35	M0215115		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
