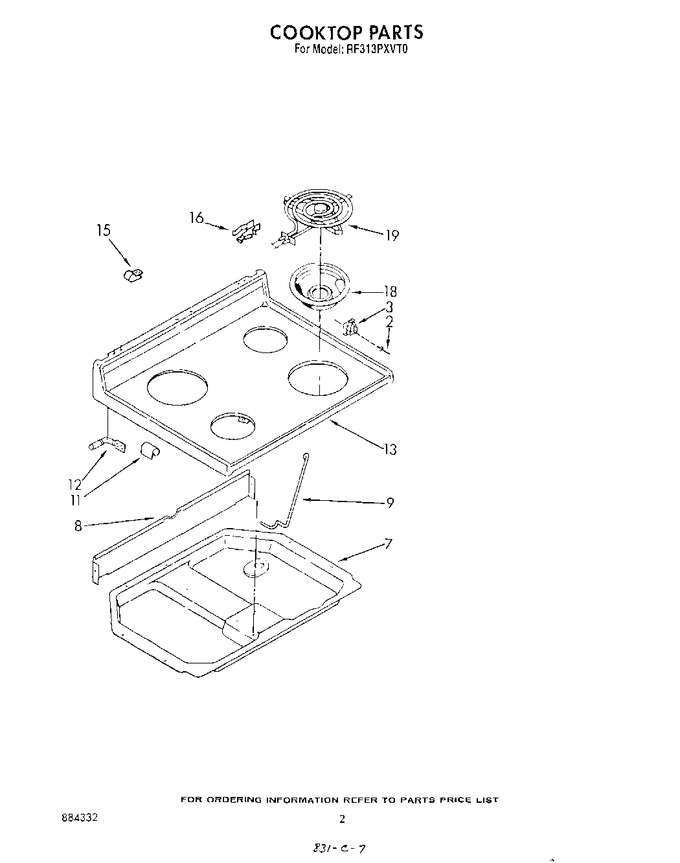

02 - Cooktop
03 - Oven
04 - Door And Drawer
05 - Oven (continued) , Literature And Optional
06 - Control Panel
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 814103 | Rivet (4) (Replaces: 3148789) |
|
$ 9.47 | |||||
| 3 | 3148659 | Screw, 10a X 3/8 (4) |
|
- | |||||
| 3 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.47 | |||||
| 7 | 3148990 | Box Burner |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | 307973 | Shield, Wiring |
|
- | |||||
| 9 | 3148659 | Rod, Cooktop |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 11 | 307965 | Bracket (2) |
|
- | |||||
| 12 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 13 | 3148433 | Cooktop (platinum) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 15 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 15 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 16 | 330031 | Clip, Mtg. Receptacle (4) (Replaces: 312606) |
|
Immediately | $ 17.93 | ||||
| 18 | WPW10196406 | Reflector Pan 6`` (2) (Replaces: 3148357) |
|
Immediately | $ 12.05 | ||||
| 18 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 3148358) |
|
Immediately | $ 19.64 | ||||
| 19 | WP660532 | Unit, Surface 6`` L.f. & R.r. (alt.) (Replaces: 309249) |
|
Immediately | $ 45.10 | ||||
| 19 | WP660532 | Unit, Surface (6`` L.f. & R.r.) (Replaces: 660528) |
|
Immediately | $ 45.10 | ||||
| 19 | WP660532 | Unit, Surface 6`` L.f. & R.r. (alt.) (Replaces: 309191) |
|
Immediately | $ 45.10 |
