SELECT A DIAGRAM

02 - Cooktop, Lit/optional


03 - Control Panel


04 - Unit, Optional


05 - Oven

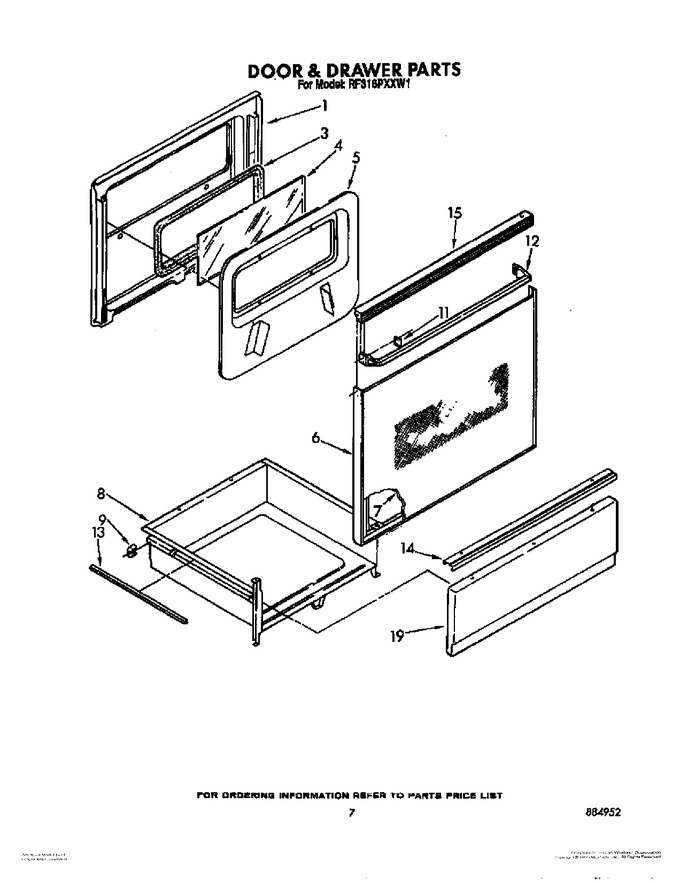

06 - Door And Drawer


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
3	3148183		Seal, Door				$ 7.41
4	3148179		Glass, Liner		Appelez-nous	-
5	3148443		Screw (6)		Appelez-nous	-
5	3148287		Retainer, Insulation		Appelez-nous	-
6	3148235		Frame, Door		Appelez-nous	-
6	3149333		Screw (3)				$ 5.33
6	WP355515		Screw (4)   (Replaces: 355515)				$ 7.63
7	3148185		Glass, Outer Door		Appelez-nous	-
8	327887		Drawer, Utility		Appelez-nous	-
9	307980		Glide, Rear (2)		Appelez-nous	-
11	3148282		Clip (2)				$ 8.69
12	3148228		Handle, Oven Door		Appelez-nous	-
13	309329		Protector (2)		Appelez-nous	-
14	WP488627		Screw (2)   (Replaces: 300128)				$ 7.30
14	313337		Handle, Drawer		Appelez-nous	-
15	3148223		Top, Door		Appelez-nous	-
15	3149333		Screw (2)				$ 5.33
19	309923		Panel Drawer (black)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
