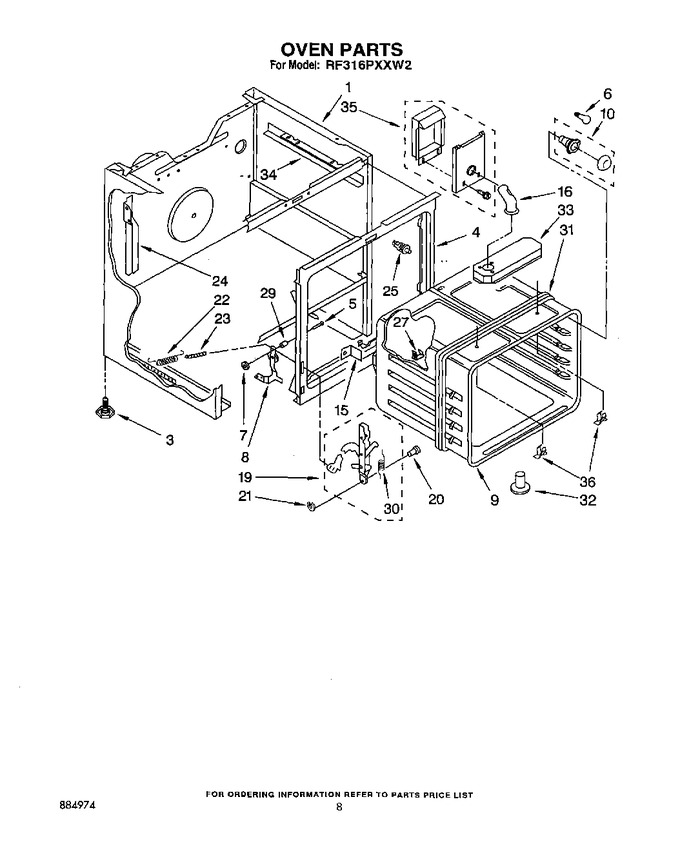

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181515		Main Chassis (black)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.62
1	330086		Main Chassis (white)		Appelez-nous	-
1	330090		Main Chassis (almond)		Appelez-nous	-
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 7.42
4	3172204		Frame, Front		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 7.62
5	307985		Pin, Hinge				$ 29.54
6	8009		Bulb, Light   (Replaces: 311255)			Immediately	$ 16.80
7	308306		Pushnut		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
9	311056		Screw (2)		Appelez-nous	-
9	3150537		Screw		Appelez-nous	-
9	3176611		Oven (30`` Conv.)		Appelez-nous	-
10	W11594027		Socket, Oven Light   (Replaces: 3150505)			Immediately	$ 78.31
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	3148906		Vent, Oven		Appelez-nous	-
19	329712		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 14.23
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 11.47
24	313197		Support, Channel (r.h.)		Appelez-nous	-
24	313196		Support, Channel (l.h.)		Appelez-nous	-
24	WP681414		Support, Channel (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.62
25	310345		Switch, Door				$ 94.86
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 78.37
29	309111		Snubber, Door (2)		Appelez-nous	-
30	308207		Spring, Door Stop		Appelez-nous	-
31	309107		Seal, Rubber				$ 63.50
32	3169144		Tube, Vent		Appelez-nous	-
33	3169129		Box Vent		Appelez-nous	-
33	WP681414		Screw (3) 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
34	WP488729		Screw (2) 8-18 X 1/2   (Replaces: 313638)			Immediately	$ 7.45
34	3147646		Support, Chassis		Appelez-nous	-
35	WP681414		Screw (1)   (Replaces: 343641)			Immediately	$ 7.62
35	WP488627		Screw (2)   (Replaces: 342055)				$ 7.30
35	3171381		Box Vent (rear)		Appelez-nous	-
36	3169107		Plug, Button (2)		Appelez-nous	-
