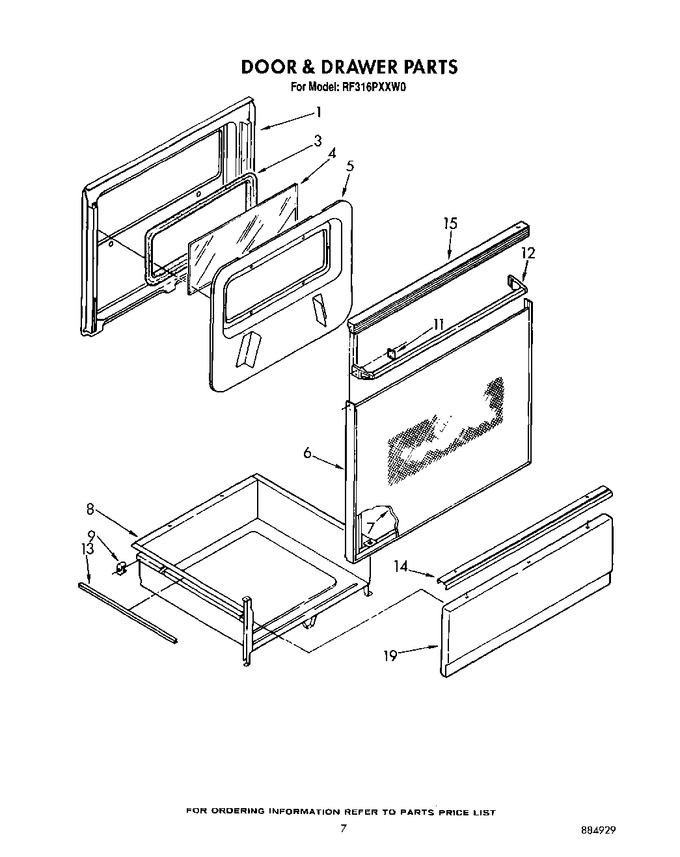

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Front Cover
02 - Cooktop, Lit/optional
03 - Control Panel
04 - Unit, Optional
05 - Oven
06 - Door And Drawer
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172220 | Liner, Door |
|
- | |||||
| 3 | 3148183 | Seal, Door |
|
$ 7.41 | |||||
| 4 | 3148179 | Glass, Liner |
|
- | |||||
| 5 | 3148443 | Screw (6) |
|
- | |||||
| 5 | 3148287 | Retainer, Insulation |
|
- | |||||
| 6 | 3148235 | Frame, Door |
|
- | |||||
| 7 | 3148185 | Glass, Outer Door |
|
- | |||||
| 8 | 327887 | Drawer, Utility |
|
- | |||||
| 9 | 307980 | Glide, Rear (2) |
|
- | |||||
| 11 | 3148282 | Clip (2) |
|
$ 8.69 | |||||
| 12 | 3148228 | Handle, Oven Door |
|
- | |||||
| 13 | 309329 | Protector (2) |
|
- | |||||
| 14 | WP488627 | Screw (2) (Replaces: 313349) |
|
$ 7.30 | |||||
| 14 | 313337 | Handle, Drawer |
|
- | |||||
| 15 | 3149333 | Screw (2) |
|
$ 5.33 | |||||
| 15 | 3148223 | Top, Door |
|
- | |||||
| 19 | 309923 | Panel Drawer (black) |
|
- | |||||
| 19 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 19 | 307935 | Panel Drawer (white) |
|
- |
