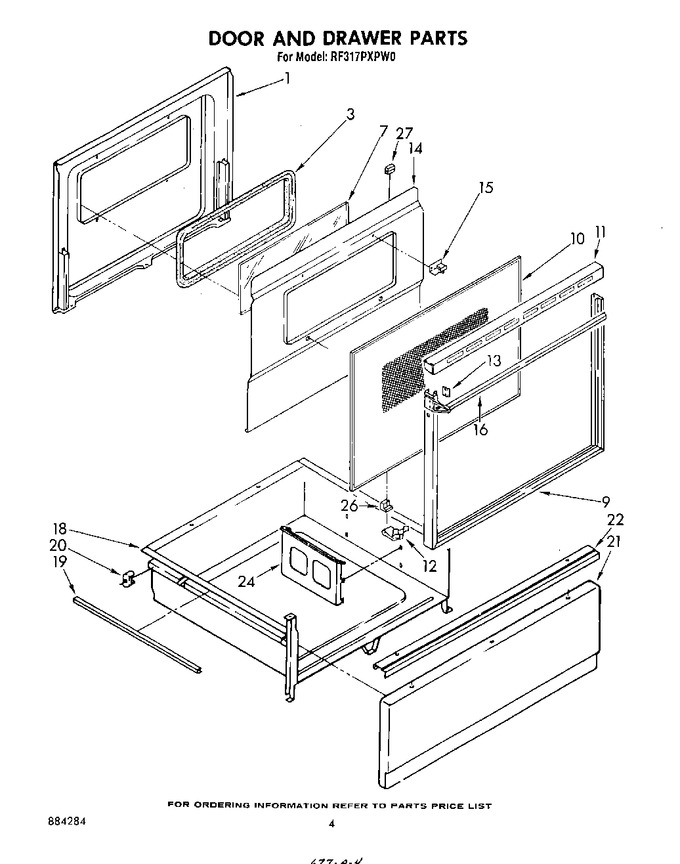

02 - Cook Top


03 - Control Panel


04 - Door And Drawer


05 - Oven , Literature And Optional


06 - Section


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, (4)		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (5)		Appelez-nous	-
1	329687		Liner, Door		Appelez-nous	-
3	258711		Seal, Fiberglass		Appelez-nous	-
7	258988		Glass, Inner		Appelez-nous	-
9	310427		Frame, Door		Appelez-nous	-
10	309069		Glass, Outer		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
12	310706		Clip, Glass (10)		Appelez-nous	-
13	314235		Clip (2)		Appelez-nous	-
14	307924		Baffle, Heat		Appelez-nous	-
14	WP90296		Clip (2)   (Replaces: 90296)				$ 7.42
15	3140094		Spacer (4)		Appelez-nous	-
15	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
16	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 7.63
16	313472		Handle, Oven Door		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	313172		Panel, Drawer (platinum)		Appelez-nous	-
21	313171		Panel, Drawer (toast)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.13
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.30
24	357645		Rack, Literature		Appelez-nous	-
26	312783		Bumper (4)		Appelez-nous	-
27	310705		Clip (2)		Appelez-nous	-
