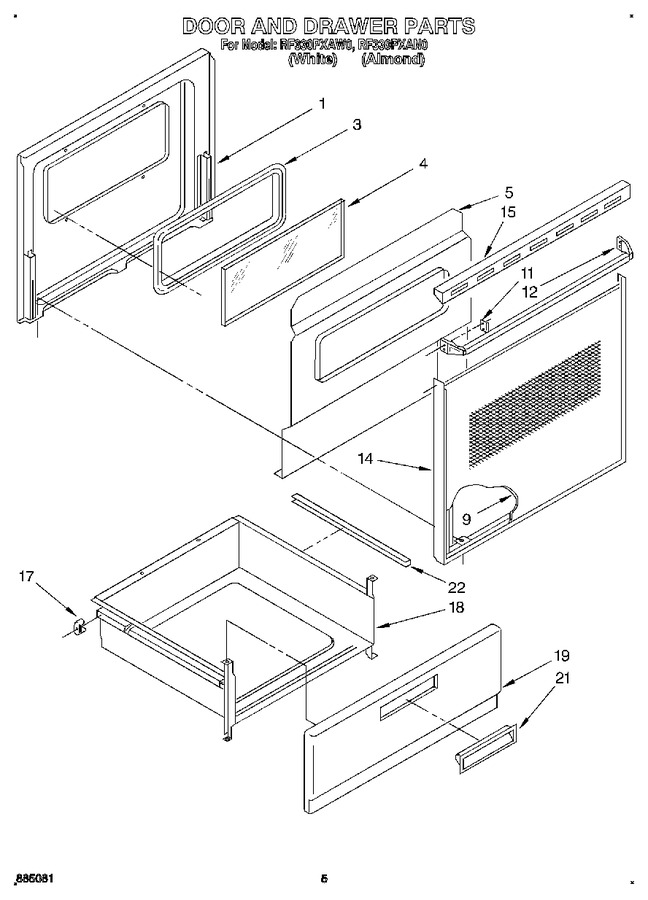

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, 10a X 1/2 (4)		Appelez-nous	-
1	3170710		Liner, Door		Appelez-nous	-
1	3149333		Screw, 10a X 1/2 (3)				$ 5.33
3	3148183		Seal, Glass				$ 7.41
4	3169202		Glass, Inner		Appelez-nous	-
5	3148443		Screw, 8-18 X 5/16 (6)		Appelez-nous	-
5	3148287		Retainer,		Appelez-nous	-
5	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
9	3148185		Panel, Outer (black Glass)		Appelez-nous	-
11	3148282		Clip (2)				$ 8.69
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 8.48
12	3148228		Handle, Oven Door		Appelez-nous	-
14	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
14	3148235		Frame, Door		Appelez-nous	-
14	3149333		Screw (3)				$ 5.33
15	3148223		Top, Door Frame		Appelez-nous	-
15	3149333		Screw (2)				$ 5.33
17	307980		Glide, Rear		Appelez-nous	-
17	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
18	327887		Drawer, Utility		Appelez-nous	-
19	3150676		Panel, Drawer (white)		Appelez-nous	-
19	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (5))   (Replaces: 313349)				$ 8.11
19	3150677		Panel, Drawer (almond)		Appelez-nous	-
21	3150613		Handle, Snap-in (almond)		Appelez-nous	-
21	3150612		Handle, Snap-in (white)		Appelez-nous	-
22	309329		Protector, Drawer		Appelez-nous	-
	LIT3150656		Wiring Diagram		Appelez-nous	-
	LIT3187320		Guide, Use & Care		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
