SELECT A DIAGRAM

02 - Cooktop


03 - Oven


04 - Door And Drawer


05 - Unit , Literature And Optional


06 - Control Panel


07 - Wiring

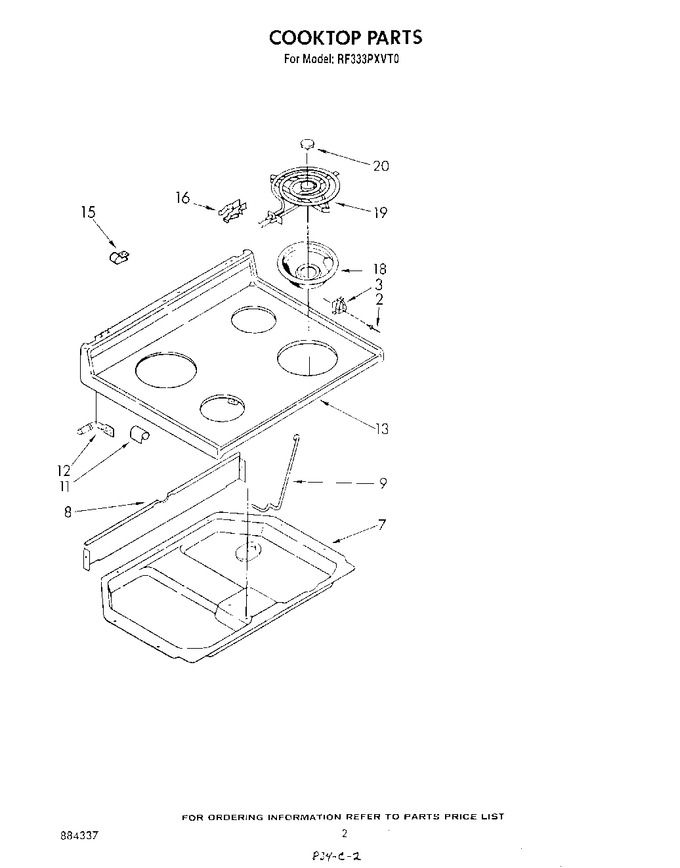

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	814103		Rivet (4)   (Replaces: 3148789)				$ 10.52
3	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 10.52
7	3149194		Box, Burner		Appelez-nous	-
7	3148659		Screw, 10a X 3/8 (4)		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
9	3148659		Rod, Cooktop		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
11	307965		Bracket (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
13	3148433		Cooktop (chrome)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
16	330031		Clip, Mtg. Receptacle (4)   (Replaces: 312606)			Immediately	$ 19.92
16	WP313808		Screw (2)   (Replaces: 313808)				$ 8.30
18	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3148357)			Immediately	$ 13.39
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3148358)			Immediately	$ 21.82
19	WP660532		Unit, Surface (6`` L.f. & R.r.)   (Replaces: 660528)			Immediately	$ 50.11
19	WP660532		Unit, Surface 6`` L.f. & R.r. (alt.)   (Replaces: 309249)			Immediately	$ 50.11
19	WP660532		Unit, Surface 6`` L.f. & R.r. (alt.)   (Replaces: 309191)			Immediately	$ 50.11
20	309195		Medallion (4)		Appelez-nous	-
	WP660533		(alt.)   (Replaces: 309185)			Immediately	$ 44.68
	WP660533		Unit, Surface 8`` R.f. & L.r.   (Replaces: 660530)			Immediately	$ 44.68
	WP660533		(alt.) (includes Illus. 20)   (Replaces: 309216)			Immediately	$ 44.68

    View Diagram in Separate Window       Print Part List
