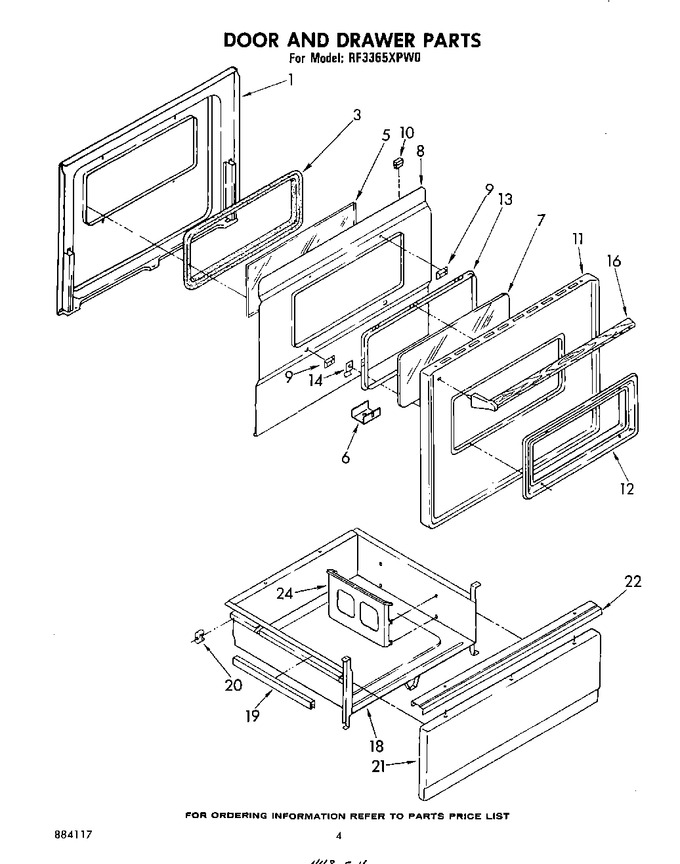

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307748 | Screw, 10a X 1/2 (9) |
|
- | |||||
| 1 | 311056 | Screw (2) |
|
- | |||||
| 1 | 313045 | Screw 7-19 X 3/8 (2) |
|
- | |||||
| 1 | 329685 | Liner, Door |
|
- | |||||
| 3 | 258711 | Seal, Fiberglass |
|
- | |||||
| 5 | 258988 | Glass, Inner |
|
- | |||||
| 6 | 309137 | Spacer, Door (2) |
|
- | |||||
| 6 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 7 | 307732 | Glass |
|
- | |||||
| 8 | 307924 | Baffle, Insulation |
|
- | |||||
| 9 | 258990 | Spacer, Insulation Baffle (4) |
|
- | |||||
| 9 | 307748 | Screw, 10ab X 1/2 (4) |
|
- | |||||
| 10 | 312783 | Bumper (4) |
|
- | |||||
| 11 | 307888 | Panel, Oven Door (white) |
|
- | |||||
| 11 | 313176 | Panel, Oven Door (platinum) |
|
- | |||||
| 11 | 313175 | Panel, Oven Door (toast) |
|
- | |||||
| 11 | 307896 | Panel, Oven Door (almond) |
|
- | |||||
| 11 | 307894 | Panel, Oven Door (harvest Gold) |
|
- | |||||
| 12 | 309173 | Frame, Window (small) |
|
- | |||||
| 13 | 307792 | Retainer, Glass |
|
- | |||||
| 14 | 307731 | Clip, Frame (2) |
|
- | |||||
| 14 | 309133 | Screw, 8-a X 5/8 (2) |
|
- | |||||
| 16 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 7.30 | |||||
| 16 | 307748 | Screw, 10ab X 1/2 |
|
- | |||||
| 16 | WP308499 | Palnut (Replaces: 308499) |
|
$ 6.57 | |||||
| 16 | 313455 | Handle, Oven Door |
|
- | |||||
| 18 | 327887 | Drawer, Utility |
|
- | |||||
| 19 | 309329 | Protector, Drawer Side (2) |
|
- | |||||
| 20 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 20 | 307980 | Glide, Rear (2) |
|
- | |||||
| 21 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 21 | 313171 | Panel, Drawer (toast) |
|
- | |||||
| 21 | 313172 | Panel, Drawer (platinum) |
|
- | |||||
| 21 | WP488787 | Panel Drawer (screw, 8-18 X 1/2 (3)) (Replaces: 312566) |
|
$ 10.13 | |||||
| 21 | 307935 | Panel Drawer (white) |
|
- | |||||
| 21 | 307938 | Panel Drawer (harvest Gold) |
|
- | |||||
| 22 | 313337 | Handle, Drawer |
|
- | |||||
| 22 | WP488627 | Screw 8-18 X 1/2 (2) (Replaces: 313349) |
|
$ 7.30 | |||||
| 24 | 357645 | Rack, Literature |
|
- |
