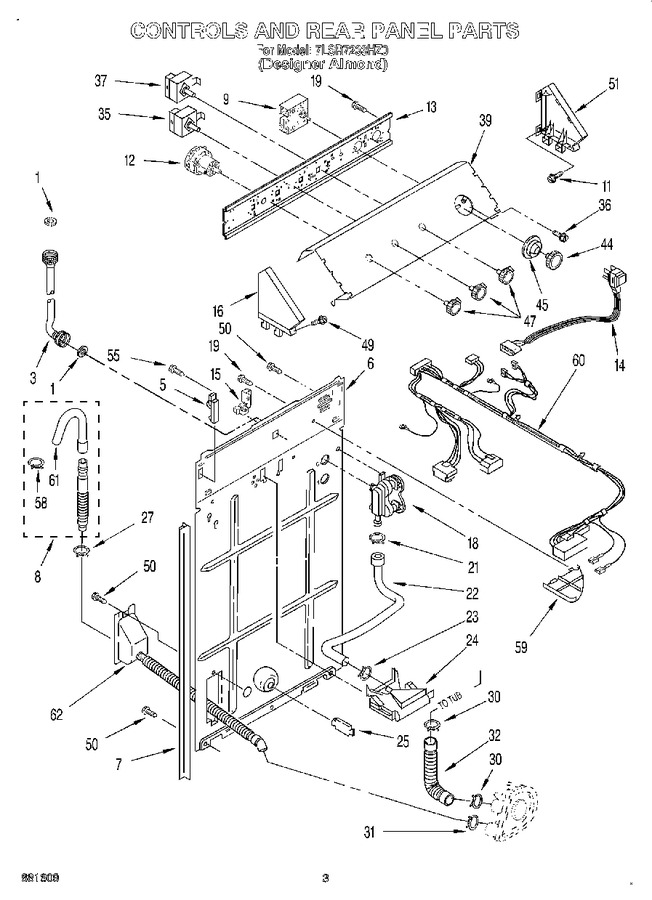

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.34 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (blue Coupling) (Replaces: 3949369) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) (red Coupling) (Replaces: 3949368) |
|
Immediately | $ 21.68 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 8 | 285666 | Hose Drain (9`) (not Included.) (Replaces: 661577) |
|
Immediately | $ 98.08 | ||||
| 8 | 285664 | Hose, Drain (4`) (Replaces: 3951609) |
|
Immediately | $ 37.88 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 57.55 | ||||
| 9 | WP3949208 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3949208) |
|
$ 354.39 | |||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 12 | W10820051 | Switch, Water Level (Replaces: 3366848) |
|
Immediately | $ 152.71 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 109.80 | |||||
| 14 | W10820044 | Cord, Power (power Cord Only, Without Harness) (Replaces: 3948063) |
|
$ 134.88 | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3358529 | Cap, End (l.h.) |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.57 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.94 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.94 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.87 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 7.93 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3950340) |
|
Immediately | $ 26.09 | ||||
| 35 | WPW10168256 | Switch, Water Temperature (Replaces: 661612) |
|
Immediately | $ 121.73 | ||||
| 36 | W10915367 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 3400808) |
|
- | |||||
| 37 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 122.63 | |||||
| 39 | 3967140 | Panel, Console |
|
- | |||||
| 44 | WP3957823 | Knob, Timer (Replaces: 3951027) |
|
$ 48.79 | |||||
| 45 | 3950763 | Dial, Timer |
|
- | |||||
| 47 | 3950760 | Knob, Controls |
|
- | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.36 | |||||
| 50 | WP9740848 | Screw, 10-16 X 3/8 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 51 | 3358514 | Cap , End (r.h.) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 7.37 | |||||
| 59 | 3348424 | Sheild, Suds |
|
- | |||||
| 60 | 3952571 | Harness, Wiring (for Detail See Parts Page) Also See Clips. |
|
- | |||||
| 61 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 88.07 | |||||
| 62 | WPW10358149 | Hose-drain Connector Assy (Replaces: 3361805) |
|
Immediately | $ 43.34 |
