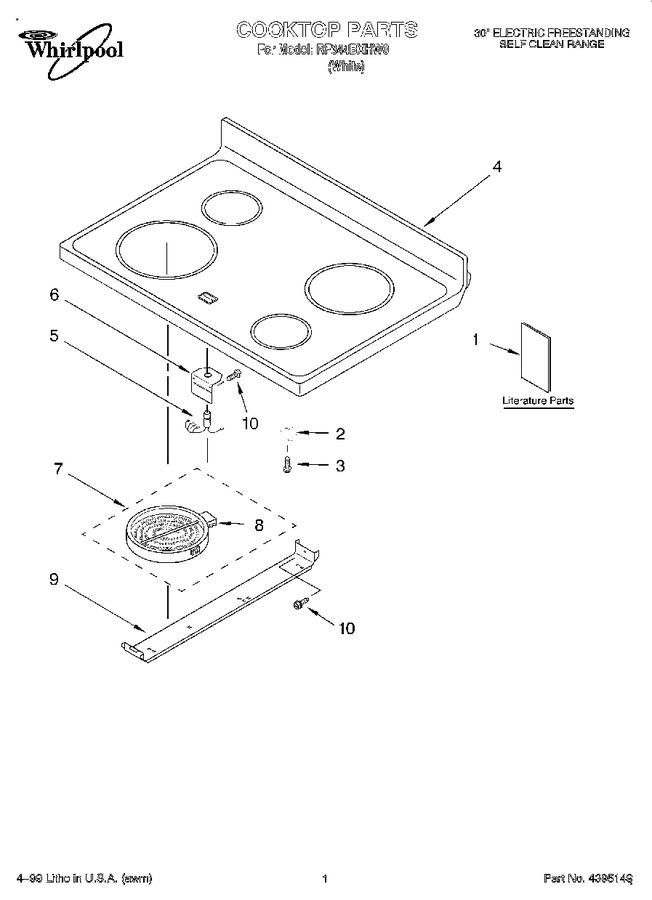

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8053714		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8053396		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8053294		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 6.80
4	8053546		Cooktop		Appelez-nous	-
5	8053723		Light, Indicator (hot Surface)		Appelez-nous	-
6	3196103		Bracket, Ind Light		Appelez-nous	-
7	W10823699		Element, Surface (includes No.8) (1500 W Lr-rf)   (Replaces: 8053604)			Immediately	$ 152.96
7	WPW10242957		Element, Surface (includes No.8) (2000 W Lf-rr)   (Replaces: 8053622)				$ 324.59
8	8053620		Limiter, Temp. All Surface Elmnts		Appelez-nous	-
9	3196454		Bracket, Element		Appelez-nous	-
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
