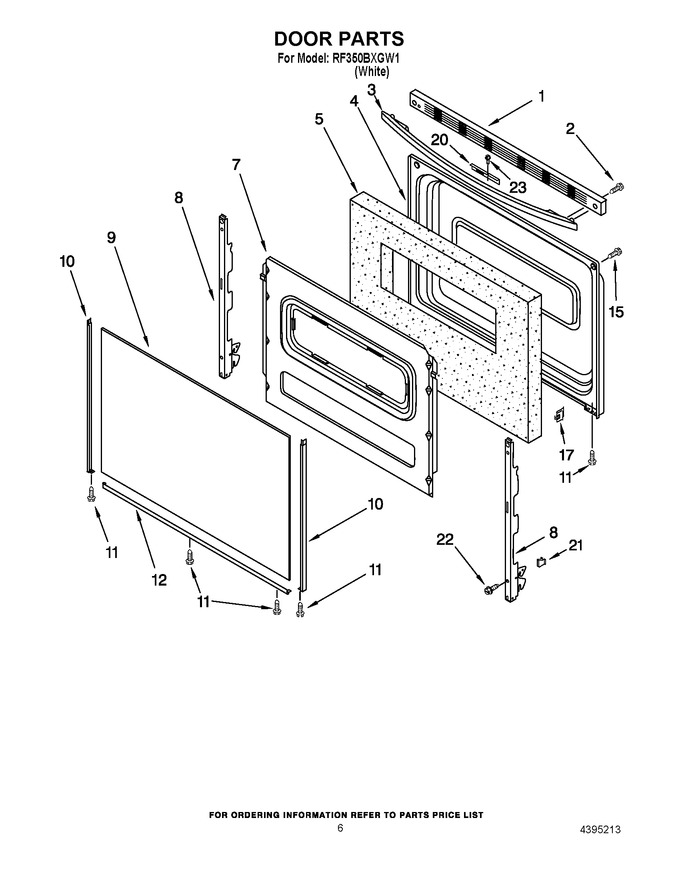

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196819 | Trim, Top (black) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 243.59 | |||||
| 4 | 3186294 | Liner, Door |
|
- | |||||
| 5 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 7 | W11699790 | Retainer, Insul. (Replaces: 3186298) |
|
- | |||||
| 8 | 8053808 | Hinge, Door (2) |
|
$ 78.89 | |||||
| 9 | 3195610 | Glass, Outer (black) |
|
- | |||||
| 10 | 8184858 | Trim, Side (black Left Hand) (Replaces: 3195976) |
|
$ 151.97 | |||||
| 10 | 8184858 | Trim, Side (black Right Hand) (Replaces: 3195973) |
|
$ 151.97 | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 12 | 8184858 | Trim, Lower (black) (Replaces: 3195424) |
|
$ 151.97 | |||||
| 15 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.58 | ||||
| 17 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 20 | 3195914 | Bracket, Latch |
|
- | |||||
| 21 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 23 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 |
