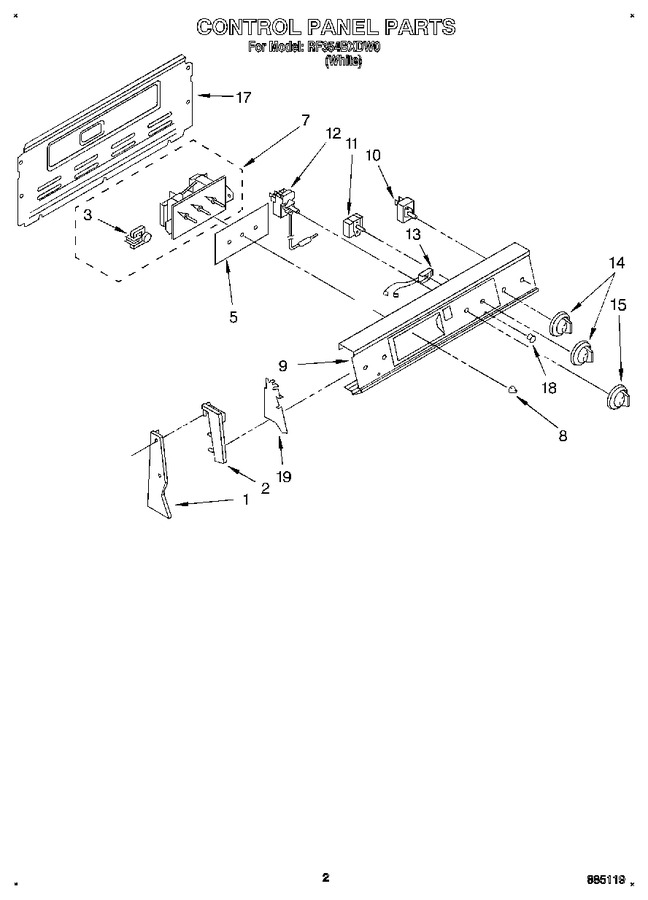

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183092		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
1	3183093		End Trim L.h.		Appelez-nous	-
2	3187792		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
5	313513		Glass, Timer		Appelez-nous	-
7	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.68
7	661458		Timer, Control		Appelez-nous	-
8	3169182		Knob (3) (timer)		Appelez-nous	-
9	WP965173		Screw (4)   (Replaces: 246132)			Immediately	$ 10.68
9	3188679		Panel, Control		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 50.99
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 62.56
11	308119		Screw (2)		Appelez-nous	-
11	3169311		Switch, Selector (5 Position)		Appelez-nous	-
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
12	3169526		Thermostat, 0ven		Appelez-nous	-
13	314031		Indicator Light (oven On)				$ 62.88
13	3148719		Indicator Light (hot Surface)		Appelez-nous	-
13	3169457		Indicator Light (surface Unit On)		Appelez-nous	-
14	WP3196231		Knob, Control (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 19.80
15	3188724		Knob, Control (thermostat)		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
17	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (3)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
19	313608		Shield, Glass (2)		Appelez-nous	-
