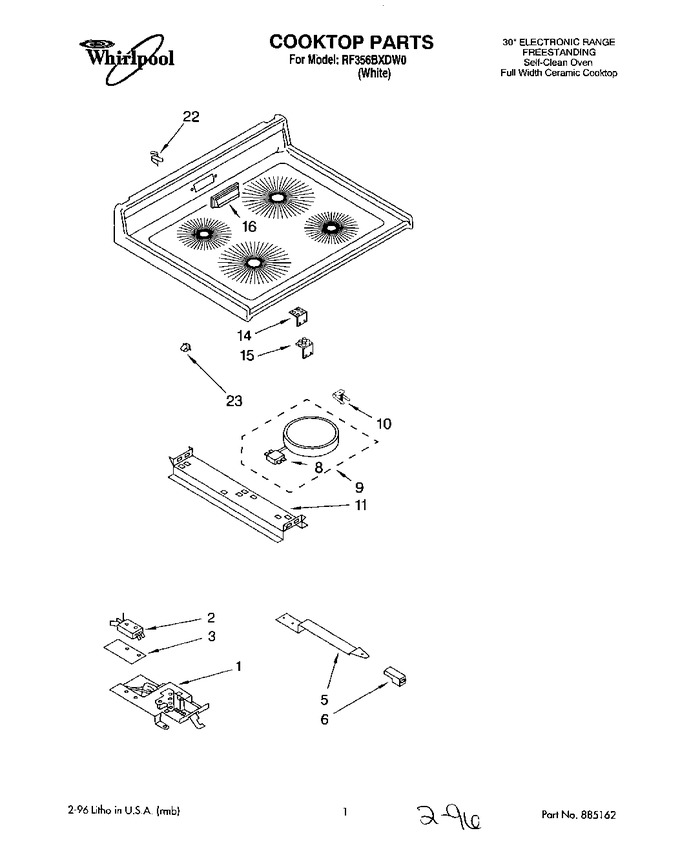

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.62
1	3148668		Latch Mechanism		Appelez-nous	-
2	3169497		Safety Switch		Appelez-nous	-
2	3169547		Screw (2)		Appelez-nous	-
3	3169498		Insulator, Switch		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
5	308422		Screw (2)		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw,			Immediately	$ 7.91
8	3169554		Limiter, Temp. (2100w - Rr)		Appelez-nous	-
8	3169553		Limiter, Temp. (1700w - Rf)		Appelez-nous	-
8	3169552		Limiter, Temp. (1400w - Lr)		Appelez-nous	-
8	3169555		Limiter, Temp. (2400w - Lf)		Appelez-nous	-
9	3169545		Element, Surface (includes No.8) (2100w - Rr)		Appelez-nous	-
9	3169544		Element, Surface (includes No.8) (1700w - Rf)		Appelez-nous	-
9	3169543		Element, Surface (includes No.8) (1400w - Lr)		Appelez-nous	-
9	3169546		Element, Surface (includes No.8) (2400w - Lf)		Appelez-nous	-
10	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
10	3149191		Spring (8)				$ 9.45
11	3148809		Bracket, Element Support		Appelez-nous	-
11	3149333		Screw (4)				$ 5.33
13	WP308685		Screw (2)   (Replaces: 3367670)			Immediately	$ 7.08
13	3176530		Cooktop		Appelez-nous	-
14	3149032		Bracket, Indicator Light Mounting		Appelez-nous	-
15	3169395		Light, Indicator (hot Surface)		Appelez-nous	-
16	3149011		Cover, Vent		Appelez-nous	-
22	3149190		Clip, Mounting (2) (vent Cover)		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
	LIT677973		Manual, Range		Appelez-nous	-
	LIT3169513		Wiring Diagram		Appelez-nous	-
	LIT3190502		Use And Care Guide		Appelez-nous	-
	LIT3189985		Instructions, Installation		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
