SELECT A DIAGRAM

01 - Cooktop, Literature

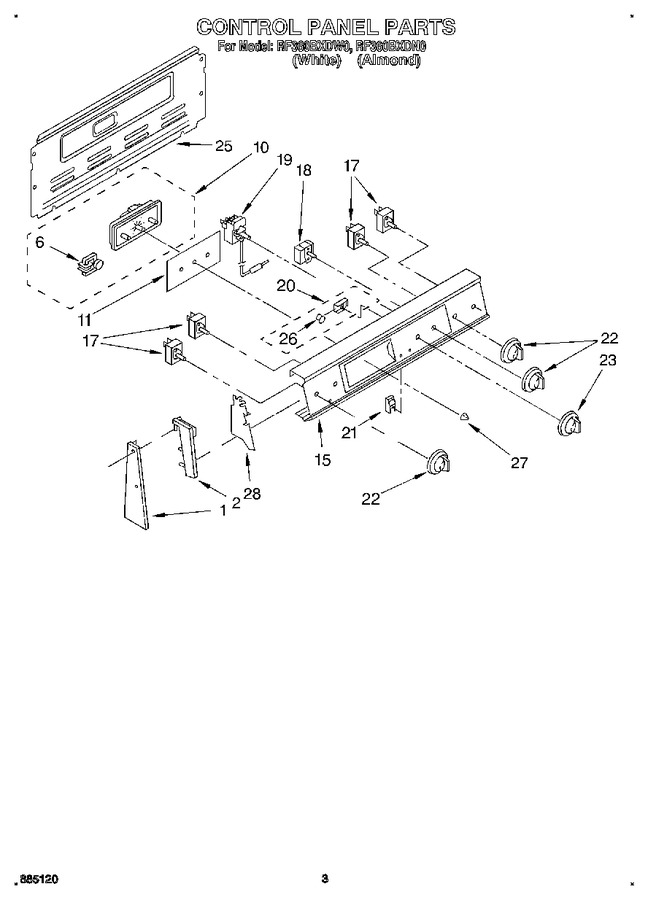

02 - Control Panel


03 - Oven


04 - Unit, Optional


05 - Door And Drawer


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
1	3187671		End Trim R.h.		Appelez-nous	-
1	3187672		End Trim L.h.		Appelez-nous	-
2	3187792		End Cap L.h.		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
6	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
10	661458		Timer, Clock (includes No.6)		Appelez-nous	-
11	313513		Glass, Timer		Appelez-nous	-
15	3188678		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.62
17	5500-287		Switch, Infinite (8`` (2))   (Replaces: 3148953)			Immediately	$ 49.03
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
17	5500-287		Switch, Infinite (6`` (2))   (Replaces: 3148951)			Immediately	$ 49.03
18	3169311		Switch, Selector (5 Position)		Appelez-nous	-
18	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
19	3169526		Thermostat, 0ven Pyro		Appelez-nous	-
20	314031		Light, Indicator (oven Unit) (includes Illus. 26)				$ 62.88
21	3169457		Light, Indicator (surface Unit) (includes Illus. 26)		Appelez-nous	-
22	WP3196231		Knob, (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 19.80
23	3188724		Knob (temp)		Appelez-nous	-
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
25	3187332		Rear Cover		Appelez-nous	-
26	313101		Lens, Amber (2)		Appelez-nous	-
27	3169182		Knob (3) (timer)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
28	313608		Shield, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
