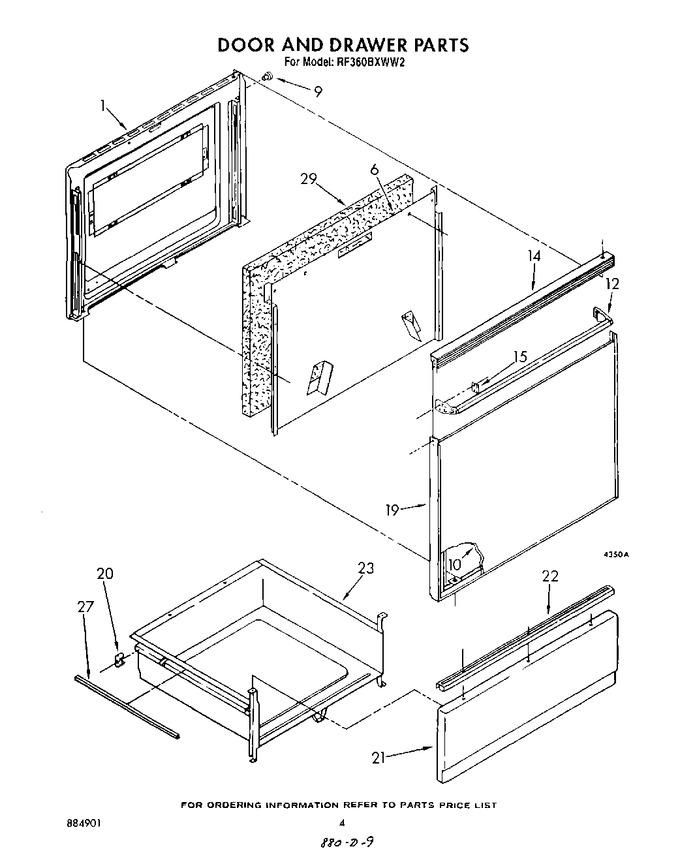

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw (9)		Appelez-nous	-
1	3148443		Screw (6)		Appelez-nous	-
1	3172219		Liner, Door		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
6	3148160		Retainer, Insulation		Appelez-nous	-
9	3148182		Bumper, Door (4)		Appelez-nous	-
10	3148186		Panel, Glass		Appelez-nous	-
12	3149333		Screw (3)				$ 5.33
12	3148228		Handle, Door		Appelez-nous	-
14	3149333		Screw (8)				$ 5.33
14	3148223		Frame, Door Top		Appelez-nous	-
15	WP355515		Screw (4)   (Replaces: 355515)				$ 7.63
15	3148282		Clip, Handle (2)				$ 8.69
19	3148235		Frame, Door		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.13
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.30
22	313337		Handle, Drawer		Appelez-nous	-
23	327887		Drawer, Utility		Appelez-nous	-
27	309329		Protector, Drawer (2)		Appelez-nous	-
29	3147951		Insulation		Appelez-nous	-
