SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Unit, Lit/optional


05 - Door And Drawer


06 - Oven


07 - Wiring Harness

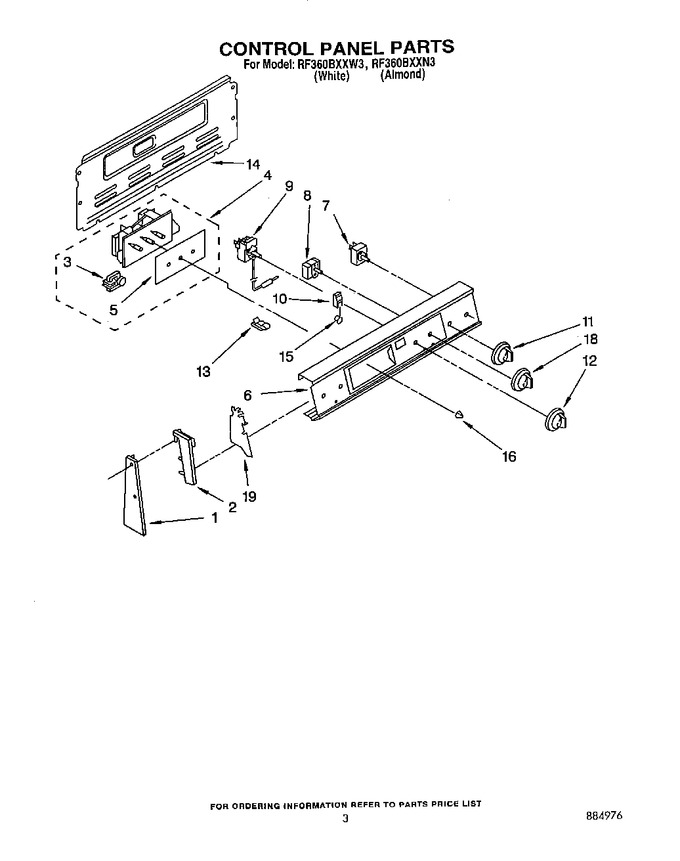

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
1	313190		End Trim L.h.		Appelez-nous	-
1	313191		End Trim R.h.		Appelez-nous	-
2	3181678		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3181677		End Cap R.h.		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
4	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
4	3150538		Timer, Clock		Appelez-nous	-
5	312416		Glass, Timer		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.62
6	3150458		Control Panel		Appelez-nous	-
7	WP3149400		Switch, Infinite (8`` Element (2))   (Replaces: 3148954)			Immediately	$ 81.46
7	WP3148952		Switch, Infinite (6`` Element (2))   (Replaces: 3148952)			Immediately	$ 62.56
7	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.10
8	WP965173		Screw (2)   (Replaces: 3150344)			Immediately	$ 10.68
8	3148419		Switch, Selector (5 Position)		Appelez-nous	-
9	3148933		Thermostat, Oven				$ 181.60
9	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
10	3150647		Indicator Light (surface Unit On (includes Illus. 15))		Appelez-nous	-
10	314031		Indicator Light (oven On)				$ 62.88
11	WP3149983		Knob, Control (4)   (Replaces: 3149983)				$ 21.95
12	3149988		Knob, Thermostat		Appelez-nous	-
13	313570		Tube Clip		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
14	313195		Rear Cover Control Panel		Appelez-nous	-
15	313101		Lens, Amber (2)		Appelez-nous	-
16	3169182		Knob, Timer (3)		Appelez-nous	-
18	3149986		Knob, Selector				$ 23.95
19	313608		Shield (2)		Appelez-nous	-
19	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68

    View Diagram in Separate Window       Print Part List
