01 - Cooktop Parts

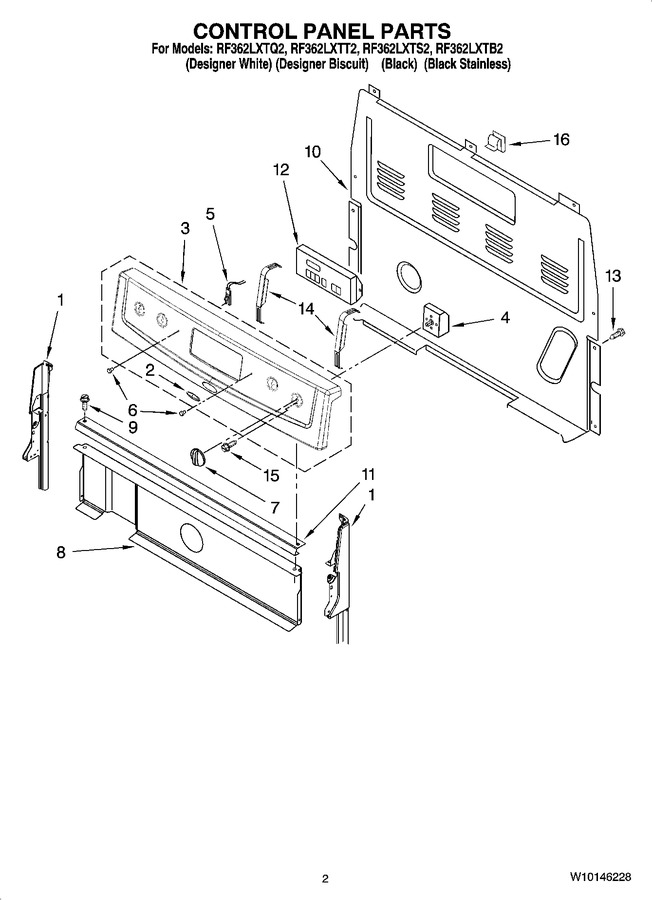

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left) (Replaces: W10009040) |
|
$ 38.21 | |||||
| 1 | W11219664 | Endcap (black Left) (Replaces: W10009080) |
|
$ 138.45 | |||||
| 1 | W11219665 | Endcap (black Right) (Replaces: W10009090) |
|
$ 40.65 | |||||
| 1 | W11230612 | Endcap (biscuit Right) (Replaces: W10009070) |
|
- | |||||
| 1 | W11219370 | Endcap (white Right) (Replaces: W10009050) |
|
$ 54.75 | |||||
| 1 | W10009060 | Endcap (biscuit Left) |
|
- | |||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | W10117602 | Panel, Control (black) |
|
- | |||||
| 3 | W10117601 | Panel, Control (biscuit) |
|
- | |||||
| 3 | W10117600 | Panel, Control (white) |
|
- | |||||
| 3 | W10117603 | Panel, Control (stainless) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (rear (rr, Lr)) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WP9758060 | Switch, Infinite (front (lf, Rf)) (Replaces: 9758060) |
|
Immediately | $ 87.54 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 20.07 | ||||
| 7 | WP9761963 | Knob, Infinite (4) (biscuit) (Replaces: 9761963) |
|
$ 18.70 | |||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 9 | 98008169 | Screw (biscuit) (Replaces: 8281194) |
|
- | |||||
| 9 | 3196166 | Screw (white) |
|
$ 6.62 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 12 | W10840298 | Control, Range (biscuit) (Replaces: W10108110) |
|
$ 408.48 | |||||
| 12 | W10840298 | Control, Range (black) (Replaces: W10108100) |
|
$ 408.48 | |||||
| 12 | W10840298 | Control, Range (white) (Replaces: W10108090) |
|
$ 408.48 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 15 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 16 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 |
