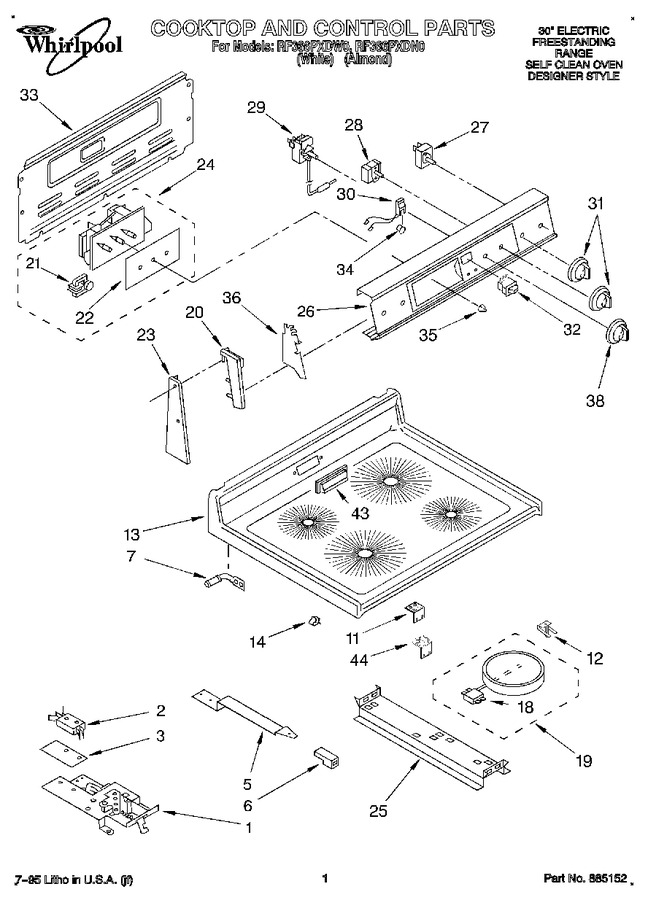

01 - Cooktop And Control
02 - Unit
03 - Door And Drawer
04 - Oven
05 - Wiring Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 1 | 3148668 | Latch Mechanism |
|
- | |||||
| 2 | 3169547 | Screw (2) |
|
- | |||||
| 2 | 3169497 | Safety Switch |
|
- | |||||
| 3 | 3169498 | Insulator, Switch |
|
- | |||||
| 5 | 3169081 | Handle, Latch (black) |
|
- | |||||
| 5 | 308422 | Handle, Latch (screw, 10-24 X 1/2 (2)) |
|
- | |||||
| 6 | 155023 | Latch Knob (screw) |
|
Immediately | $ 7.91 | ||||
| 6 | 3148684 | Latch Knob (black) |
|
- | |||||
| 7 | 3169384 | Pin, Top (2) |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 11 | 98520 | Screw (2) |
|
- | |||||
| 11 | 3149032 | Bracket, Indicator Light Mounting |
|
- | |||||
| 12 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 7.21 | |||||
| 12 | 3149191 | Spring, Element (8) |
|
$ 9.45 | |||||
| 13 | 3176531 | Cooktop (almond) |
|
- | |||||
| 13 | WP308685 | Cooktop (screw (2)) (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 13 | 3176530 | Cooktop (white) |
|
- | |||||
| 14 | 311311 | Clip, Wire |
|
- | |||||
| 18 | 3169554 | Limiter, Temp. (2100w - Rr) |
|
- | |||||
| 18 | 3169553 | Limiter, Temp. (1700w - Rf) |
|
- | |||||
| 18 | 3169555 | Limiter, Temp. (2400w - Lf) |
|
- | |||||
| 18 | 3169552 | Limiter, Temp. (1400w - Lr) |
|
- | |||||
| 19 | 3169546 | Element, Surface (includes No. 18) (2400w - Lf) |
|
- | |||||
| 19 | 3169543 | Element, Surface (includes No. 18) (1400w - Lr) |
|
- | |||||
| 19 | 3169544 | Element, Surface (includes No. 18) (1700w - Rf) |
|
- | |||||
| 19 | 3169545 | Element, Surface (includes No. 18) (2100w - Rr) |
|
- | |||||
| 20 | WP965173 | Screw (4) (Replaces: 3150344) |
|
Immediately | $ 10.68 | ||||
| 20 | 3187791 | End Cap R.h. |
|
- | |||||
| 20 | 3187792 | End Cap L.h. |
|
- | |||||
| 21 | 309822 | Motor, Timer |
|
- | |||||
| 21 | 3185647 | Screw (2) |
|
- | |||||
| 22 | 3169549 | Glass, Timer |
|
- | |||||
| 23 | 3187672 | End Trim L.h. |
|
- | |||||
| 23 | 3169366 | Screw (4) |
|
- | |||||
| 23 | 3187671 | End Trim R.h. |
|
- | |||||
| 24 | WP965173 | Timer, Clock (screw (2)) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 24 | 661458 | Timer, Clock (black With Chrome) |
|
- | |||||
| 25 | 3148809 | Bracket, Mounting |
|
- | |||||
| 25 | 98520 | Screw (6) |
|
- | |||||
| 26 | 3189222 | Control Panel |
|
- | |||||
| 27 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 27 | 308119 | Switch, Infinite (screw (8)) |
|
- | |||||
| 27 | WP3148955 | Switch, Infinite (lf & Rr) (Replaces: 3148955) |
|
$ 137.05 | |||||
| 28 | 308119 | Screw (2) |
|
- | |||||
| 28 | 3169311 | Switch, Selector (5 Position) |
|
- | |||||
| 29 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 7.47 | |||||
| 29 | 3169526 | Thermostat, Oven |
|
- | |||||
| 30 | 314031 | Light, Indicator (oven Unit) |
|
$ 62.88 | |||||
| 30 | 3169457 | Light, Indicator (surface Unit) |
|
- | |||||
| 31 | WP3196231 | Knob, (5) (inf. & Selector) (Replaces: 3188721) |
|
Immediately | $ 19.80 | ||||
| 32 | 3182717 | Switch, Rocker |
|
- | |||||
| 33 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 33 | 3187332 | Cover, Control |
|
- | |||||
| 34 | 313101 | Lens, Amber (2) |
|
- | |||||
| 35 | 3169182 | Knob, Timer (3) |
|
- | |||||
| 36 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 36 | 313608 | Shield, Glass (2) |
|
- | |||||
| 38 | 3188724 | Knob, Thermostat |
|
- | |||||
| 43 | 3149190 | Cover, Vent (clip (2)) |
|
- | |||||
| 43 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 43 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 44 | 3169395 | Light, Indicator (hot Surface) |
|
- |
