01 - Compressor Compartment Parts


02 - Fz Door Parts

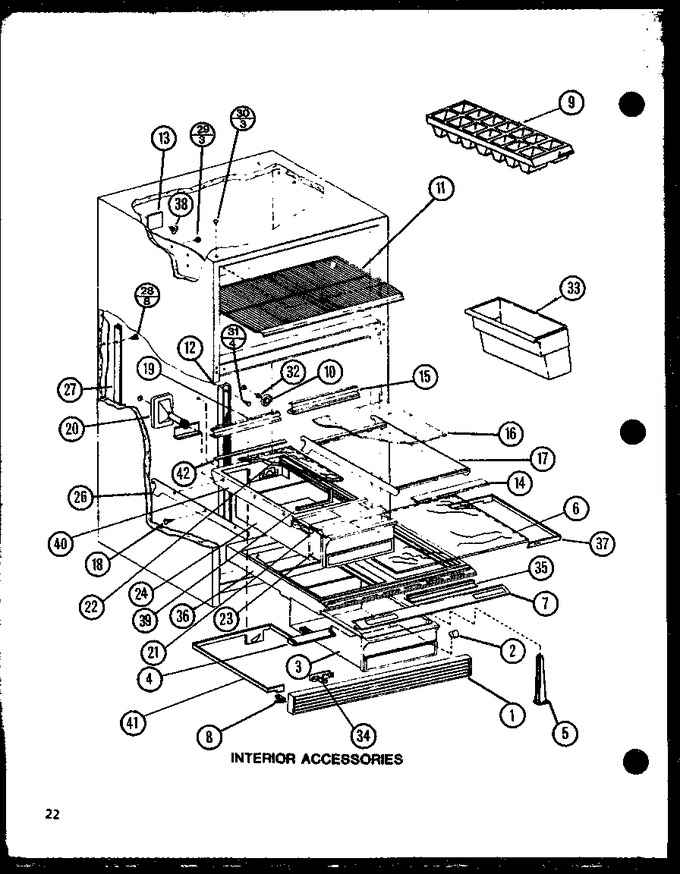

03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520505		Grille-toe		Appelez-nous	-
2	10038401		Knob, Crisper Control		Appelez-nous	-
3	D7581023		Pan, Crisper		Appelez-nous	-
4	D7860602		Slide Crisper Cont. A		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7421259		Glass Crisper Top Gg		Appelez-nous	-
7	D7616651		Trim Front Crisper		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 43.06
10	M0310314		Plug		Appelez-nous	-
11	D7580706		Shelf, Frz		Appelez-nous	-
12	D7599002		Ladder, Center		Appelez-nous	-
13	D7874401		Cover Fill Tube		Appelez-nous	-
14	10049908		Trim, Shelf		Appelez-nous	-
15	C8913603		Trim, Shelf Rear		Appelez-nous	-
16	D7421281		Glass Shelf		Appelez-nous	-
17	D7871002		Frame, Cantilever		Appelez-nous	-
18	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
19	C8990403		Trim		Appelez-nous	-
20	D7859302		Grommet M.k.		Appelez-nous	-
21	10049910		Trim, Shelf		Appelez-nous	-
22	D7421253		Glass Shelf Mk		Appelez-nous	-
23	D7698315		Meat Pan		Appelez-nous	-
24	D7698104		Sleeve M.k.		Appelez-nous	-
25	D7862903		Blank Side Rail		Appelez-nous	-
26	D7862904		Blank Side Rail		Appelez-nous	-
27	D7599105		Ladder, Side		Appelez-nous	-
28	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
29	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 7.39
30	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
30	M0310716		Plug		Appelez-nous	-
31	M0230923		Screw		Appelez-nous	-
32	B8362502		Insul. Mk Plug		Appelez-nous	-
33	D7709904		Ice Bucket		Appelez-nous	-
34	D7859401		Slide-mk Control		Appelez-nous	-
35	D7718402		Seal Crisper		Appelez-nous	-
36	D7856504		Frame		Appelez-nous	-
37	D7859601		Band Crisper Control		Appelez-nous	-
38	67006425		Screw   (Replaces: M0230917)			Immediately	$ 6.57
39	A3263905		Gasket-per Ft		Appelez-nous	-
40	D7853302		Frame M.k. V		Appelez-nous	-
41	D7859501		Band M.k. Control		Appelez-nous	-
42	10043101		Ext. Rear Glass		Appelez-nous	-
NI	D7871123		Glass Shelf Asssembly		Appelez-nous	-
NI	D7871124		Glass Shelf Asssembly		Appelez-nous	-
NI	R0179145		Cripser Top Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
