01 - Compressor Compartment Parts
02 - Fz Door Parts

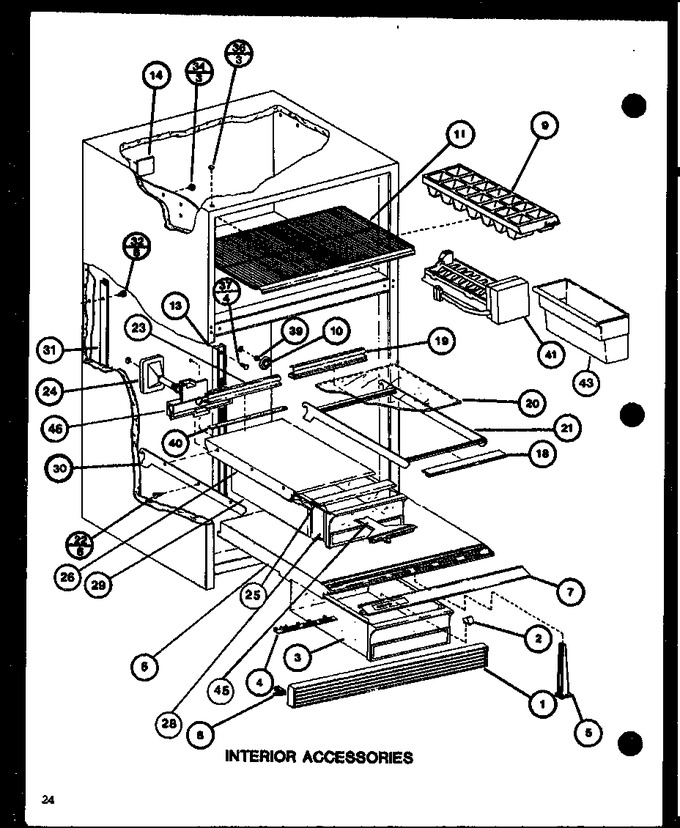

03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts
06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520505 | Grille-toe |
|
- | |||||
| 2 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 3 | D7581023 | Pan, Crisper |
|
- | |||||
| 4 | D7587705 | Slide Humidity |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | D7616505 | Top,crisper A-k |
|
- | |||||
| 7 | D7616617 | Trim |
|
- | |||||
| 8 | M0117301 | Clip, Grille |
|
- | |||||
| 10 | M0310314 | Plug |
|
- | |||||
| 11 | D7580702 | Shelf, Frz |
|
- | |||||
| 13 | D7599001 | Ladder Center |
|
- | |||||
| 18 | C8913507 | Trim, Front Shelf |
|
- | |||||
| 19 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 20 | D7421230 | Glass Shelf |
|
- | |||||
| 21 | D7602302 | Assy, Glass Shelf |
|
- | |||||
| 22 | M0213129 | Screw |
|
- | |||||
| 23 | C8831810 | Trim, Rear Shelf |
|
- | |||||
| 24 | D7701201 | Grommet Mk |
|
- | |||||
| 25 | C8913508 | Trim |
|
- | |||||
| 26 | D7698204 | Top M.k |
|
- | |||||
| 28 | D7698315 | Meat Pan |
|
- | |||||
| 29 | D7698104 | Sleeve M.k. |
|
- | |||||
| 30 | D7600029 | Side Plate Mk |
|
- | |||||
| 31 | D7599101 | Ladder Side |
|
- | |||||
| 31 | D7599103 | Ladder Side |
|
- | |||||
| 32 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 36 | M0310716 | Plug |
|
- | |||||
| 36 | M0310720 | Plug |
|
- | |||||
| 36 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 7.39 | ||||
| 37 | M0230923 | Screw |
|
- | |||||
| 39 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 40 | M0275163 | Tape Per Roll |
|
- | |||||
| 41 | D7824706Q | Ice Maker (Replaces: D7767601) |
|
Immediately | $ 150.62 | ||||
| 45 | D7697903 | M.k. Control Slide |
|
- | |||||
| 46 | D7698003 | Housing M.k. Slide |
|
- | |||||
| NI | D7621111 | Ice Pan |
|
- | |||||
| NI | D7714631 | Glass Shelf Assy |
|
- | |||||
| NI | R0179090 | Crisper Top Assy |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| NI | D7714621 | Glass Shelf Assy |
|
- |
