Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10450313 Extrusion- Mk Front Appelez-nous -
2 10681402 Rail, Pntd Appelez-nous -
3 Y10370015 Usr 10370097 (18) Appelez-nous -
4 10459802 Extr, Rear Shelf Appelez-nous -
5 10562502 Ext, Gl Shelf Side Appelez-nous -
6 10451402 Extrusion Mk Rear Appelez-nous -
7 10417301 Glide, Meat Kpr. Appelez-nous -
8 10432101 Glide, Meat Kpr. Appelez-nous -
9 10417110 Pan, Meat Appelez-nous -
10 10459904 Extr., Front Shelf Appelez-nous -
11 10460101 Shelf, Glass Frame Appelez-nous -
12 10370014 Glass, Shelf (18-19) Appelez-nous -
13 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

23 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

NI 10480405 Glass Shelf Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

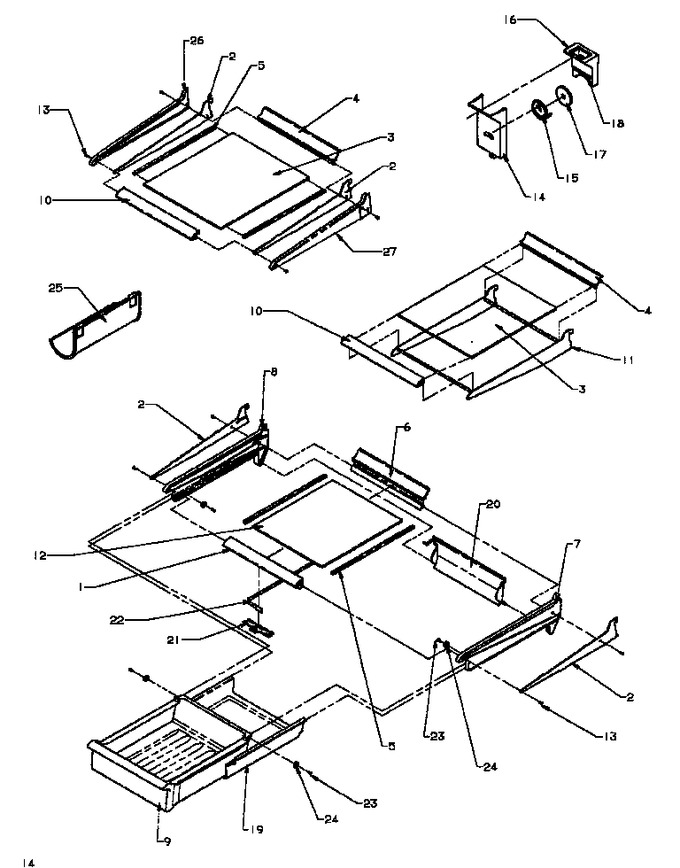

Diagram for TK18R3L (BOM: P1181710W L)
