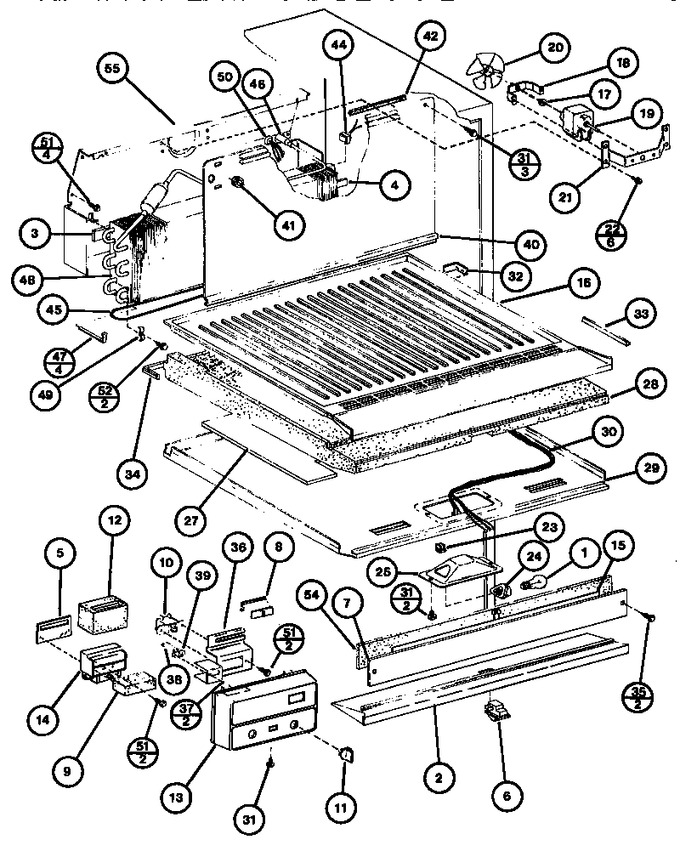

01 - Compressor Compartment
02 - Functional Parts (ref/fzr)
03 - Fz Door
04 - Interior Accessories
05 - Rear Components
06 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 2 | D7580001 | Ref Top Brkr Kit |
|
- | |||||
| 3 | B8322902 | Block Evap. Coil |
|
- | |||||
| 4 | B8361701 | Block Evap Coil |
|
- | |||||
| 5 | B8345401 | Gasket, Damper |
|
- | |||||
| 6 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 35.18 | ||||
| 7 | C8842503 | Center Mullion |
|
- | |||||
| 7 | C8842505 | Center Mullion, Almond |
|
- | |||||
| 7 | C8842504 | Center Mullion |
|
- | |||||
| 7 | C8842502 | Center Mullion |
|
- | |||||
| 7 | C8842501 | W Center Mull. -pnt |
|
- | |||||
| 8 | C8889201 | Control M.k. |
|
- | |||||
| 9 | C8902601 | Insert, Control |
|
- | |||||
| 10 | C8907301 | Cold Control |
|
$ 104.73 | |||||
| 11 | D7009802 | Knob |
|
- | |||||
| 12 | D7543201 | Insulation Damper |
|
- | |||||
| 13 | D7545004 | Cover Control |
|
- | |||||
| 14 | D7547402 | Damper Control, Warm 26.5°f, N |
|
- | |||||
| 15 | D7577103 | Heater Mullion |
|
- | |||||
| 16 | D7580402 | Bottom Freezer |
|
- | |||||
| 17 | WP2264462 | Gromet (Replaces: A1017201) |
|
Immediately | $ 41.55 | ||||
| 18 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 19 | WPC8891605 | Motor, Evap Fan (Replaces: C8891601) |
|
$ 310.34 | |||||
| 20 | C8927801 | Blade, Evap Fan |
|
- | |||||
| 21 | D7524501 | Brkt Evap Fan Shroud |
|
- | |||||
| 22 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 23 | B5733302 | Clip, Ground |
|
- | |||||
| 24 | C8708801 | Socket-light |
|
- | |||||
| 25 | C8730101 | Shield, Light |
|
- | |||||
| 27 | C8887903 | Insulation |
|
- | |||||
| 28 | D7521803 | Drain Block Kit |
|
- | |||||
| 29 | D7539303 | Top Ref. |
|
- | |||||
| 30 | D7649601 | Harness Mullion |
|
- | |||||
| 31 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 6.57 | ||||
| 32 | M0275114 | Tape |
|
- | |||||
| 33 | B5757703 | Gasket, Air Block |
|
- | |||||
| 34 | B5757808 | Gasket |
|
- | |||||
| 35 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 36 | D7543101 | Bracket, Control |
|
- | |||||
| 37 | M0010202 | Rivet A |
|
- | |||||
| 38 | M0305301 | Diode |
|
- | |||||
| 39 | M0341202 | Switch |
|
- | |||||
| 40 | D7539803 | Evap Cover |
|
- | |||||
| 41 | M0310314 | Plug |
|
- | |||||
| 42 | A3189319 | Gasket |
|
- | |||||
| 44 | WP10442411 | Thermostat, Defrost (Replaces: C8898601) |
|
Immediately | $ 39.62 | ||||
| 45 | D7549701 | Heater Evap. |
|
- | |||||
| 46 | D7554902 | Heat Exchanger |
|
- | |||||
| 47 | M0103502 | Clamp |
|
- | |||||
| 48 | R0170015 | See Svs Ltr F-674 |
|
- | |||||
| 49 | A3253803 | Clamp |
|
- | |||||
| 50 | D7552401 | Harness Liner |
|
- | |||||
| 51 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 52 | M0212932 | Screw |
|
- | |||||
| 54 | B0523563 | Insulation Ft. K |
|
- | |||||
| 55 | D7593501 | Shroud, Evaporator Fan |
|
- |
