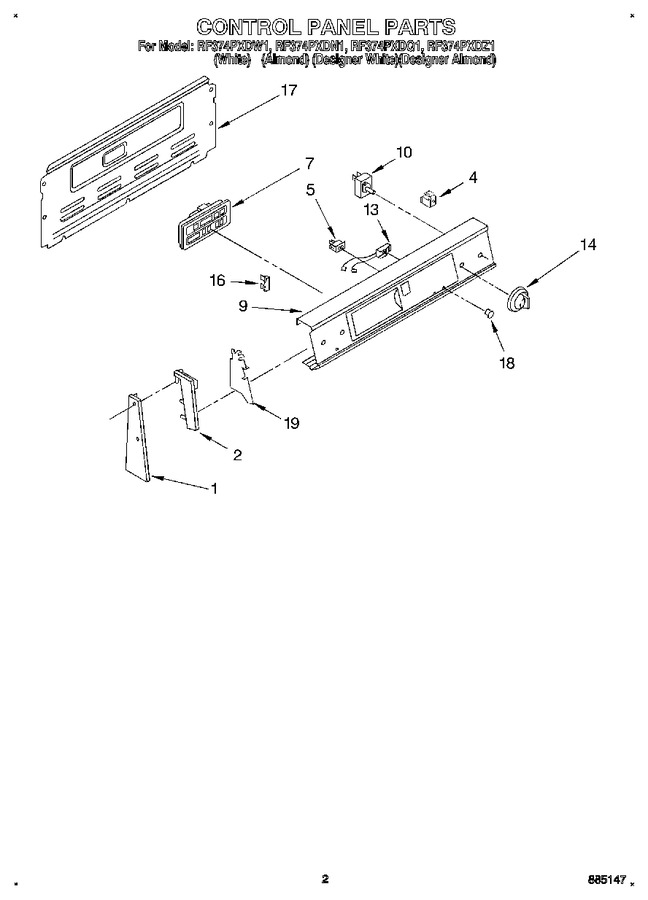

1	3188994		End Trim (designer Alm. Mdl) (right)		Appelez-nous	-
1	3183093		End Trim (white & Alm Mdls) (left (black))		Appelez-nous	-
1	3183092		End Trim (white & Alm Mdls) (right (black))		Appelez-nous	-
1	3183095		End Trim (designer White Mdl) (left)		Appelez-nous	-
1	3183094		End Trim (designer White Mdl) (right)		Appelez-nous	-
1	3188995		End Trim (designer Alm. Mdl) (left)		Appelez-nous	-
2	3187792		End Cap (white & Alm Mdls.) (left (black))		Appelez-nous	-
2	3187791		End Cap (white & Alm Mdls.) (right (black))		Appelez-nous	-
2	3187794		End Cap (designer White Mdl) (left)		Appelez-nous	-
2	3187793		End Cap (designer White Mdl) (right)		Appelez-nous	-
2	3187796		End Cap (designer Alm Mdl) (left)		Appelez-nous	-
2	WP965173		End Cap (designer Alm Mdl) (screw (2))   (Replaces: 3150344)			Immediately	$ 10.68
2	3187795		End Cap (designer Alm Mdl) (right)		Appelez-nous	-
4	3147832		Adapter, Terminal		Appelez-nous	-
5	3182718		Switch, Rocker (designer White)		Appelez-nous	-
5	3182717		Switch, Rocker (black)		Appelez-nous	-
5	3182719		Switch, Rocker (designer Almond)		Appelez-nous	-
7	3195183		Timer, Erc Control (designer White)		Appelez-nous	-
7	3195182		Timer, Erc Control (black)		Appelez-nous	-
7	3195184		Timer, Erc Control (designer Almond)		Appelez-nous	-
9	3188690		Panel, Control (designer White)		Appelez-nous	-
9	3189220		Panel, Control (black)		Appelez-nous	-
9	3188996		Panel, Control (screw, 8-18 X 5/8 (4)) (white)		Appelez-nous	-
9	3169471		Panel, Control (screw, 8-18 X 5/8 (4)) (almond)		Appelez-nous	-
9	3169366		Panel, Control (screw, 8-18 X 5/8 (4)) (black)		Appelez-nous	-
9	3188691		Panel, Control (designer Almond)		Appelez-nous	-
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 62.56
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 50.99
13	3169439		Indicator Light (hot Surface)		Appelez-nous	-
13	3169457		Indicator Light (surface Unit On)		Appelez-nous	-
14	WP3196231		Knob, Infinite (4) (black)   (Replaces: 3188721)			Immediately	$ 19.80
14	3188723		Knob, Infinite (4) (designer Almond)		Appelez-nous	-
14	3188722		Knob, Infinite (4) (designer White)		Appelez-nous	-
16	3187848		Fuse, Thermal		Appelez-nous	-
16	98520		Screw		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.62
17	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
19	313608		Shield, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
