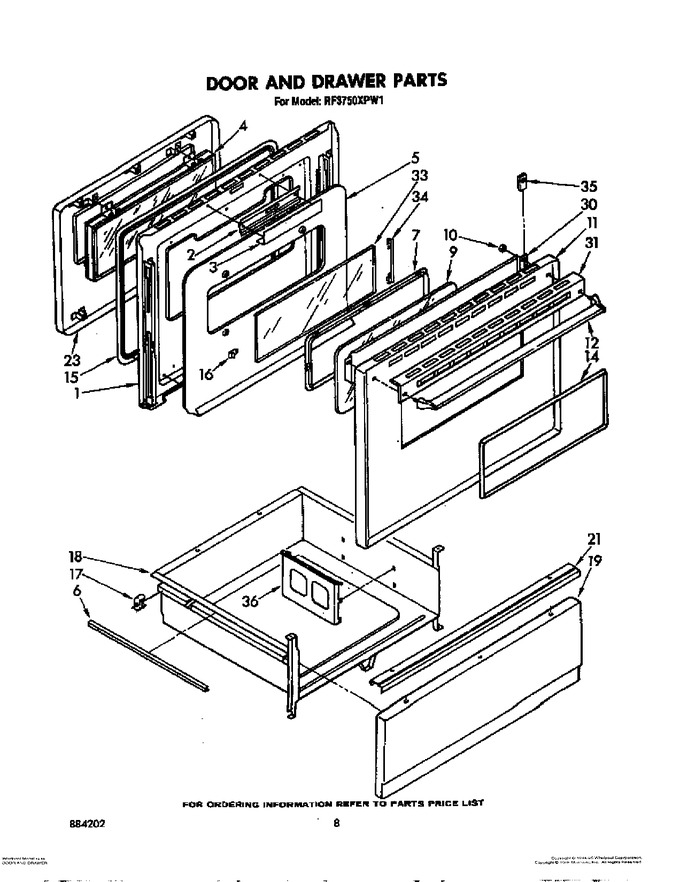

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312006		Screw, 8a X 1/2 (2)		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	329694		Liner, Door		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311885		Shield		Appelez-nous	-
4	330038		Window Package		Appelez-nous	-
4	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
5	308021		Retainer, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
6	309329		Protector, Drawer		Appelez-nous	-
7	307792		Retainer, Glass		Appelez-nous	-
9	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
9	307732		Glass, Outer		Appelez-nous	-
10	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.57
11	313179		Panel, Door (toast)		Appelez-nous	-
11	313180		Panel, Door (platinum)		Appelez-nous	-
11	311056		Panel, Door (screw (2))		Appelez-nous	-
11	307909		Panel, Door (white)		Appelez-nous	-
11	307915		Panel, Door (harvest Gold)		Appelez-nous	-
11	307917		Panel, Door (almond)		Appelez-nous	-
12	313455		Handle, Oven Door		Appelez-nous	-
14	309173		Frame, Window		Appelez-nous	-
14	309133		Screw, 8ax5/8		Appelez-nous	-
15	311904		Seal, Fiberglass		Appelez-nous	-
16	307731		Clip, Frame (2)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	307980		Glide, Rear (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
19	WP488787		Panel, Drawer (screw (3))   (Replaces: 312566)				$ 10.13
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	WP488627		Screw, 8d X 3/8 (3)   (Replaces: 313349)				$ 7.30
21	313337		Handle, Drawer		Appelez-nous	-
23	327898		Panel, Inner		Appelez-nous	-
23	311885		Shield		Appelez-nous	-
23	WP90296		Clip (2)   (Replaces: 90296)				$ 7.42
30	308011		Baffle, Top		Appelez-nous	-
31	311890		Clip		Appelez-nous	-
31	311063		Trim, Panel		Appelez-nous	-
33	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
34	309843		Retainer, Glass		Appelez-nous	-
35	309845		Spacer (fish Paper)		Appelez-nous	-
36	357645		Rack, Literature		Appelez-nous	-
