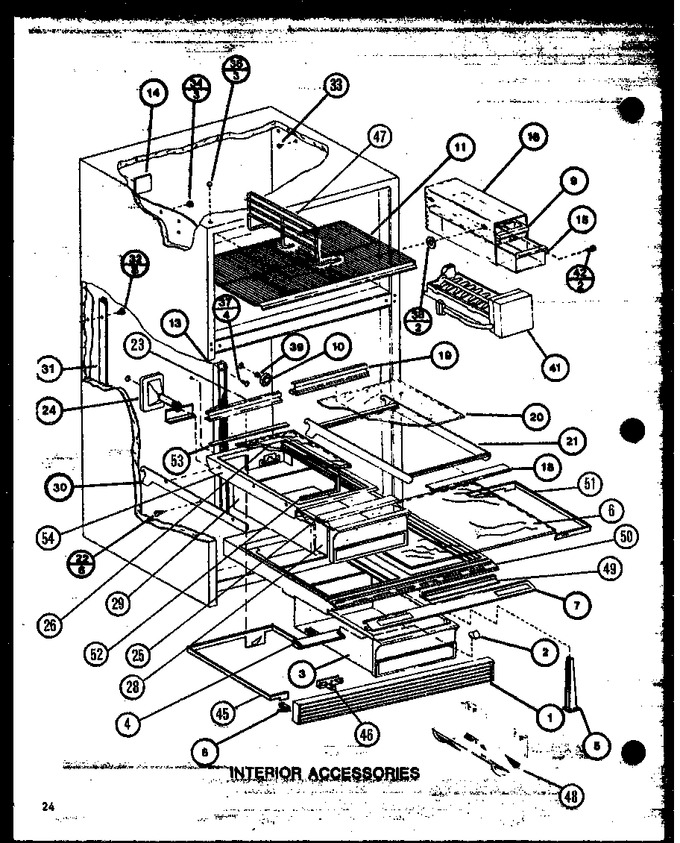

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Page 11


05 - Rear Components


06 - Ref Door Parts


07 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520503		Grille-toe-b K		Appelez-nous	-
2	C8991201		Knob, Crisper Control		Appelez-nous	-
3	D7581025		Pan Crisper		Appelez-nous	-
4	D7860601		Slide, Crisper Control		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7421260		Glass Crisper Top Gg		Appelez-nous	-
7	D7616626		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
10	M0310314		Plug		Appelez-nous	-
11	D7580704		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421284		Glass Shelf		Appelez-nous	-
21	D7871002		Frame, Cantilever		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
23	C8990401		Trim, Rear Shelf		Appelez-nous	-
24	D7859302		Grommet M.k.		Appelez-nous	-
25	C8913529		Trim, Front Shelf		Appelez-nous	-
26	D7421256		Glass Shelf Mk		Appelez-nous	-
28	D7698316		Meat Pan		Appelez-nous	-
29	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
30	D7862903		Blank Side Rail		Appelez-nous	-
30	D7862904		Blank Side Rail		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
33	M0311301		Plug Button		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 7.39
37	M0230923		Screw		Appelez-nous	-
39	B8362502		Insul. Mk Plug		Appelez-nous	-
41	Y00000000		See Note Factory Installed Ice Maker		Appelez-nous	-
45	D7859501		Band M.k. Control		Appelez-nous	-
46	D7859401		Slide-mk Control		Appelez-nous	-
47	D7806001		Shelf Wire		Appelez-nous	-
48	D7547604		Bottle Rack		Appelez-nous	-
49	D7718402		Seal Crisper		Appelez-nous	-
50	D7856503		Frame		Appelez-nous	-
51	D7859601		Band Crisper Control		Appelez-nous	-
52	A3030305		Gasket-per Ft		Appelez-nous	-
53	B8393601		10043101		Appelez-nous	-
54	D7853301		Frame, M.k		Appelez-nous	-
NI	R0179130		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871115		Glass Shelf Assembly		Appelez-nous	-
NI	D7871116		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
