View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop
03 - Control Panel
04 - Door And Drawer
05 - Unit, Lit/optional
06 - Oven
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:

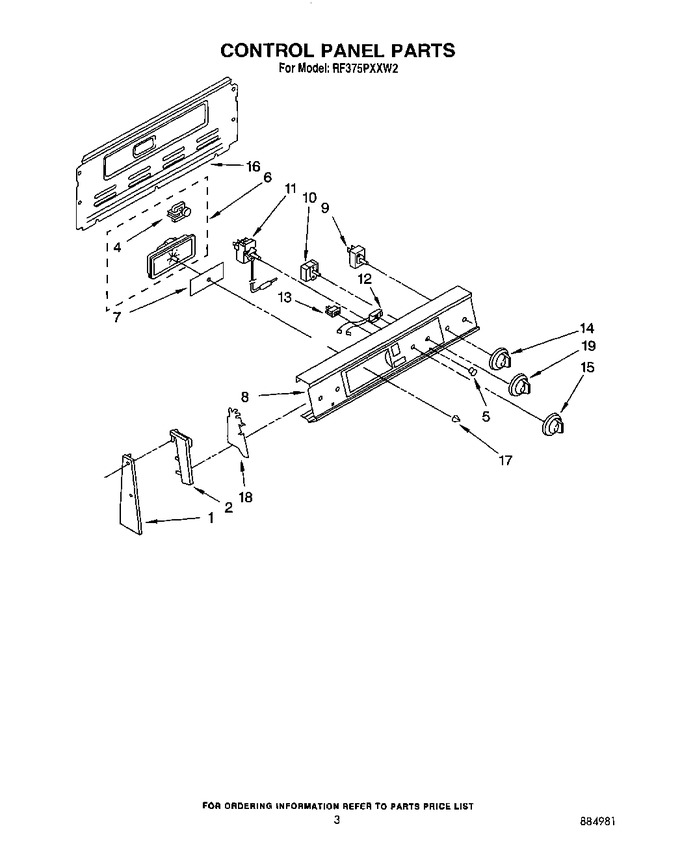

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | End Trim R.h. |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 1 | 312604 | Screw 8-18 X 5/8 (4) |
|
- | |||||
| 1 | 313190 | End Trim L.h. |
|
- | |||||
| 2 | 313230 | End Cap R.h. |
|
- | |||||
| 2 | 313231 | End Cap L.h. |
|
- | |||||
| 2 | 254225 | Screw (4) |
|
- | |||||
| 4 | 309822 | Motor, Timer |
|
- | |||||
| 5 | 313101 | Lens, Light (2) |
|
- | |||||
| 6 | 3149505 | Timer, Clock |
|
- | |||||
| 6 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 7 | 313513 | Glass, Timer |
|
- | |||||
| 8 | 3150628 | Control, Panel |
|
- | |||||
| 9 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.10 | |||||
| 9 | WP3148952 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 9 | WP3149400 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 10 | WP965173 | Screw, (2) No.8 X .31 (Replaces: 3150344) |
|
Immediately | $ 10.68 | ||||
| 10 | 3148419 | Switch, Selector (5 Position) |
|
- | |||||
| 11 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 7.47 | |||||
| 11 | 3148933 | Thermostat, Oven |
|
$ 181.60 | |||||
| 11 | 98005642 | Bulb-clip (Replaces: 313382) |
|
Immediately | $ 78.37 | ||||
| 12 | 3150647 | Indicator Light (surface Unit On) |
|
- | |||||
| 12 | 314031 | Indicator Light (oven Unit On) |
|
$ 62.88 | |||||
| 13 | WP4314961 | Switch, Rocker (Replaces: 3148564) |
|
$ 84.56 | |||||
| 14 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | WP3149983 | Knob, (4) Infinite Switch (Replaces: 3149982) |
|
$ 21.95 | |||||
| 15 | 3181370 | Knob, Thermostat |
|
$ 25.07 | |||||
| 16 | 313195 | Rear Cover Control Panel |
|
- | |||||
| 16 | WP681414 | Screw, 10-16 X 1/2 (12) (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 17 | 3169182 | Knob, Timer (3) |
|
- | |||||
| 18 | 313608 | Shield, Control Panel (2) |
|
- | |||||
| 18 | WP965173 | Screw (4) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 19 | 3181372 | Knob, Selector |
|
- |
